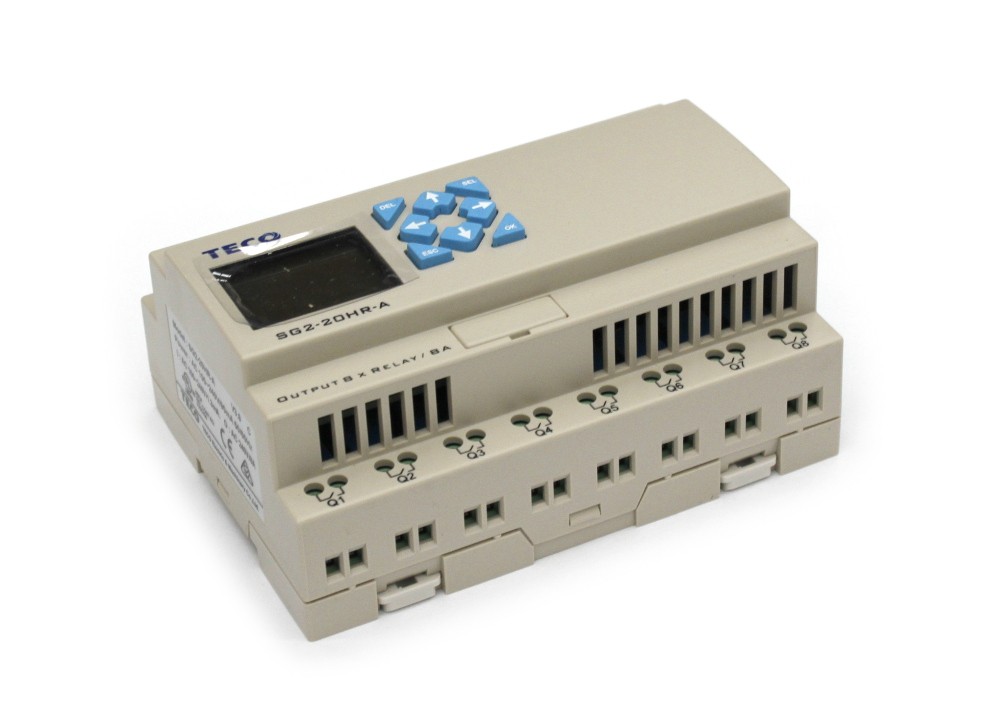

TECO SG2 V3.92 Programmable Logic Relay SG2-20HR-D

(0 review)

SKU : TEC-015
Quantity on Hand : 2
Skill Level : Assembled and Tested

Buy 10, Get 5% Off!
Buy 100, Get 10% Off!


149.00 149.0 USD 149.00


Not Available For Sale

  • WeightMajor
  • WeightMinor

This combination does not exist.

Add to cart

Description: TECO SG2 Series PLR V.3.92,  24 VDC Powered, 8 DC Inputs, 4 Analog Inputs 8 Relay Outputs, Keypad / Display, Expandable (Max. 44) I/O. The SG2 Series from Teco Westinghouse offers the price of a programmable relay with the capability of a small PLC. With 24VDC Powered, 8 DC Inputs, 4 Analog Inputs, 8 Relay Outputs expandable up to 44 I/O, this intelligent relay will control almost all discrete systems. The SG2-20HR-D features a 4x16 character LCD screen and keypad for operator feedback and control

The programming software SG2 Client runs on Windows and is freely available for download. Programming can be in either Ladder Logic or Function Block. A programming cable SKU part number TEC-200 is required (see below)

Do you have an application for one of our PLCs but don't know how to program in Ladder Logic? We can program it for you. Email us your requirements and we will provide a quote to do the programming.


  • Power Supply: 20.4~28.8 VDC 150 mA
  • Digital Inputs: Twelve Inputs, OFF <5VDC, ON>15 VDC
  • Digital Outputs: 8 relay outputs
  • Output Rating: 265 VAC / 30 VDC Relay Outputs, 8 A Resistive Load
  • Analog Inputs: Four 0-10 VDC 10 bit resolution
  • Analog Inputs Isolation: None
  • LCD Display: 4 line, 16 character
  • Keypad: 8 Programming Keys
  • Program Memory: 300 Lines or 260 Function Blocks
  • Program Storage: Retentive Flash Memory
  • Real Time Clock: Built In - Daylight Saving Feature
  • Timers: 31 (0.01 s ~ 9999 min)
  • Approvals: UL / cUL / CE
  • Warranty: 1 Year
  • Model SG2-20HR-D

Documentation and Downloads
