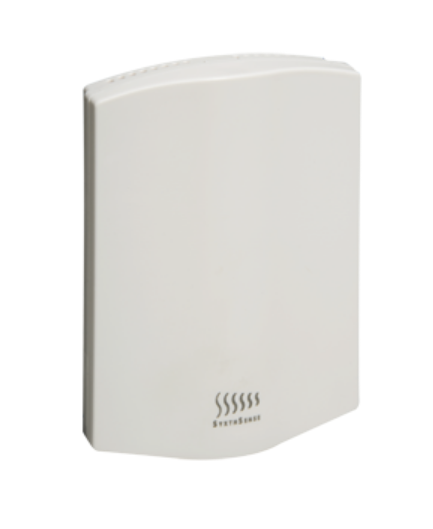

BACnet MS/TP IO-Module 2DI/2DO

  • WeightMajor
  • WeightMinor

149.00 149.00 149.0 USD

149.00

This combination does not exist.

Add to Cart

SKU : SXS-100
Quantity on Hand : 0
Skill Level : Assembled and Tested

Buy 10, Get 5% Off!
Buy 100, Get 10% Off!


30-day money-back guarantee
Free Shipping in the U.S. on Orders over $75
We offer worldwide shipping as well
Buy now and choose from several shipping methods

Terms and Conditions

Description: BAC-DIO4 has been designed to be a compact wall mounted BACnet MS/TP input and output module. The module has 2 volt-free digital inputs for measurements e.g. for windows, occupancy sensors and so on. The module has also 2 digital outputs, 24Vac triacs switching the plant items on/off. The module supports BACnet MS/TP communications with most commonly used baud rates and parity settings, with baud rate adjustable through bit switch. The module also supports BACnet device and object discovery allowing fast and efficient programming.


Features:

  • Power supply: 24Vac/dc -10%/+15%
  • Digital Outputs: 2 x 24Vac Triacs; 2A maximum; requires 24Vac Power Supply
  • Digital Inputs: 2 x Volt-Free Contact, Impedance <1KOhm
  • Pulse Counting: Max 25Hz, Min Pulse Length 20mA (Volatile)
  • Protocol: BACnet MS/TP Communications
  • Interface: RS485 maximum 63 devices
  • MAC Addressing: 0..63 via a bit switch; 0..247 via tool / network
  • Baud rate: 9k6/19k2/38k4/76k8
  • Parity: None/Even/Odd, 1 or 2 Stop
  • Temperature: 0°C...+50°C (32..122°F)
  • Humidity: 0...95%rh (non-cond.)
  • Standards CE: Conformity CE Directive 2004/108/EY EN61000-6-3: 2001 (Generic Emission) EN61000-6-1: 2001 (Generic Immunity)
  • Degree of Protection: IP20
  • Housing: ABS Plastics, Self Extinguishing

Documentation and Downloads
