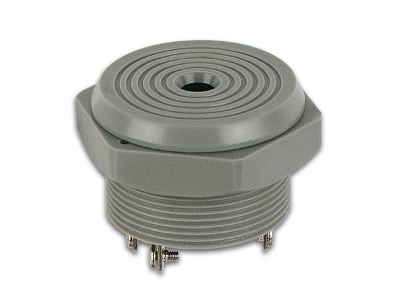

Panel-Mounting Buzzer 4-28V DC / 8mA PCB TYPE
SKU : SV5
Quantity on Hand :
5
Skill Level : Component or Part
ROHS Compliant
Buy 10, Get 5% Off!
Buy 100, Get 10% Off!
30-day money-back guarantee
Free Shipping in the U.S. on Orders over $75
We offer worldwide shipping as well
Buy now and choose from several shipping methods
Features:
Panel-mounting type with screw connectors Continuous or pulse mode High sound pressure level Operating power: 4-28V DC / 8mA
Specifications:
Tone type: single / pulse Operating voltage: 3 - 28V DC Rated voltage: 12V DC Current consumption: 8mA Osc. frequency: 3.5kHz Sound level: 90dB Connector type: screw Body color: gray Weight: 0.77oz
Specifications:
Documentation and Downloads
