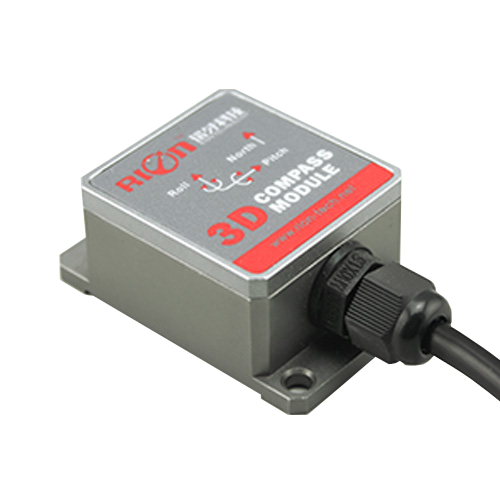

DCM260B Low-Cost 3D Electronic Compass with RS-485

https://electronics123.odoo.com/web/image/product.template/9855/image_1920?unique=2d814ff
(0 review)

SKU : SRS-205
Quantity on Hand : 1
Skill Level : Assembled and Tested

Buy 10, Get 5% Off!
Buy 100, Get 10% Off!

SRS-205 DCM260B

235.00 235.0 USD 235.00

235.00

Not Available For Sale

  • WeightMajor
  • WeightMinor

This combination does not exist.

Add to cart

Description: DCM260B is a low-cost 3D electronic compass (with enclosure), works based hard magnetic and soft magnetic calibration algorithm, make the compass eliminate the magnetic influence through calibration algorithm in the magnetic interference environment ,DCM260B integrated three-axis fluxgate sensor, in real time solver heading through the central processor, and using 3-axis accelerometer to proceed heading compensation for the wide range tilt angle, to ensure the compass still can provide high-precision heading data when the tilt angle up to ±85°.Electronic compass integrated high-precision MCU control, various output mode, standard interfaces including RS232/RS485/TTL and other interfaces, and accept other communication interface customization. DCM260B with small size, low power consumption, can be used for the antenna stability, vehicles, systems integration and other more fields, high shock resistance, high reliability makes the compass work properly in extremely harsh env​ironments, and is more suitable for nowadays miniaturization military high-precision measurement integrated control system.


Some applications include:

  • Satellite antenna search satellite
  • Marine navigation surveying and mapping
  • Gun emission system
  • Oceanography measurement instruments
  • ROV underwater robot navigation
  • Unmanned aircraft

Specifications:

  • Power supply: 5V DC
  • Output: RS485
  • Communication Rate: 2400~19200baud
  • Heading accuracy: 0.8°
  • Wide temperature: -40 to +85°
  • Tilt angle measuring range: ±85°
  • Tilt angle resolution: 0.1°
  • Tilt angle accuracy: 0.2°
  • 3D Digital Compass
  • Dimension: L 55 × W 37 × H 24 mm
