Qwiic Module for Tessel 2
Buy 10, Get 5% Off!
Buy 100, Get 10% Off!

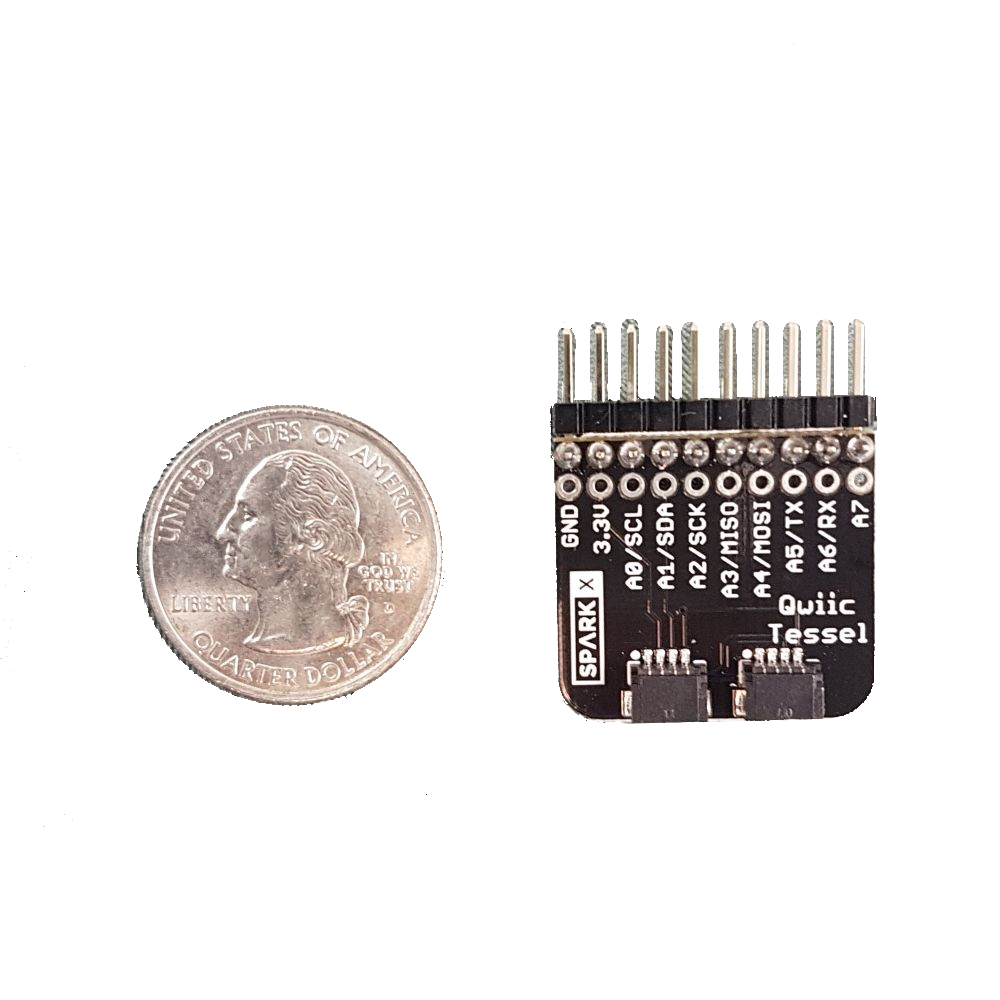

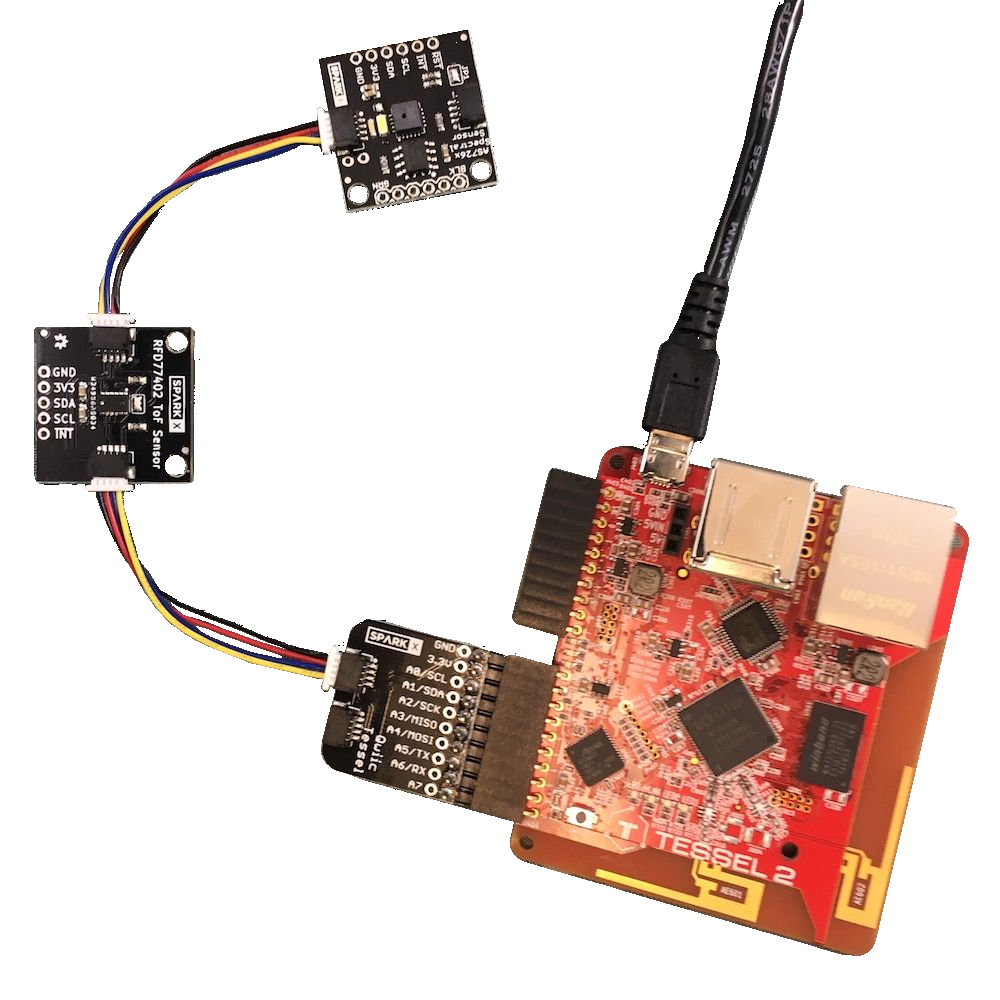

Description: The Qwiic Module for Tessel 2 connects the I2C bus (GND, 3.3V, SDA, and SCL) on the Tessel 2 to the SparkFun Qwiic system. Just plug the module onto either Tessel Port (A or B), plug in a cable, and start playing with a variety of sensors and actuators. There are two connectors, all on the same I2C bus, so you can connect multiple devices.
The module comes soldered with a male header so you can get started immediately! We also exposed a 2nd row of hardware pins so that you can create connections to the hardware pins (Serial, SPI, and GPIO) if needed.
The Qwiic system enables fast and solderless connection between popular platforms and various sensors and actuators.
- Two Qwiic connectors
- Male 10-pin header
- Connector: SM04B-SRSS or equivalent
- 2nd row of hardware pins exposed in 0.1" header for easy soldering
