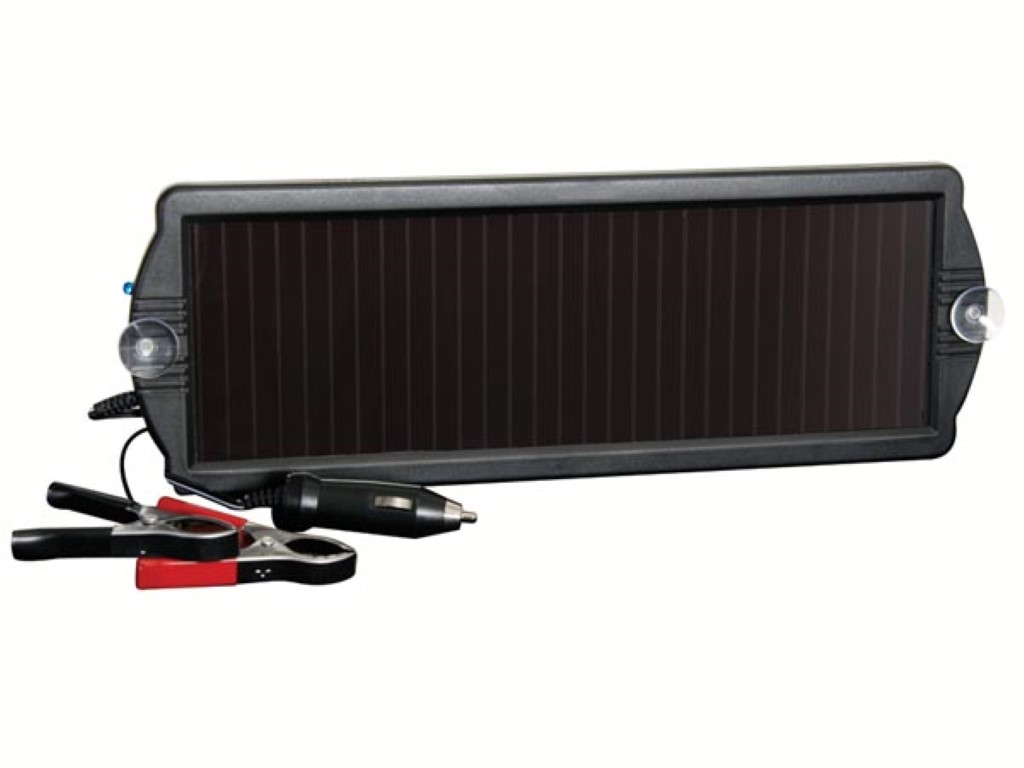

Trickle Charger with Solar Cells (12V/1.5 W)

https://electronics123.odoo.com/web/image/product.template/5257/image_1920?unique=4d5dc7a
(0 review)

SKU : SOL5N
Quantity on Hand : 2
Skill Level : Assembled and Tested
ROHS Compliant

Buy 10, Get 5% Off!
Buy 100, Get 10% Off!

SOL5N

35.95 35.95 USD 35.95

35.95

Not Available For Sale

  • WeightMajor
  • WeightMinor

This combination does not exist.

Add to cart


Description: Powerful solar power source for 12 VDC battery.

Features:

  • Built-in protection to prevent current reversal

  • Amorphous solar cells

  • Included accessories:

    • 1 x lead wire with cigarette lighter plug

    • 1 x lead (3m) with 2 battery clamps

    • 4 x suction cups (for mounting e.g. on car window)

Specifications:

  • Power: 1.5W maximum

  • Voltage output: 12V (± 20%)

  • Nominal voltage: 17.5 V

  • Current: max.125mA

  • Operating temperature: -15 ~ +45 °C

  • Dimensions: 13.4" x 4.7" x 0.6"

  • Weight: 1.0 lbs

  • Open circuit voltage (Voc): 21 V

As long as there is sufficient sunlight, the charger will produce a small electrical current to trickle charge your battery. The blue LED will flash when the panel is trickle charging the battery. The charger will not overcharge or damage the battery. Similarly, a blocking diode ensures that the charger cannot flatten your battery. Please note that the SOL5N is designed to trickle charge batteries to compensate for the natural drainage. It is not intended to recharge a completely discharged battery.
