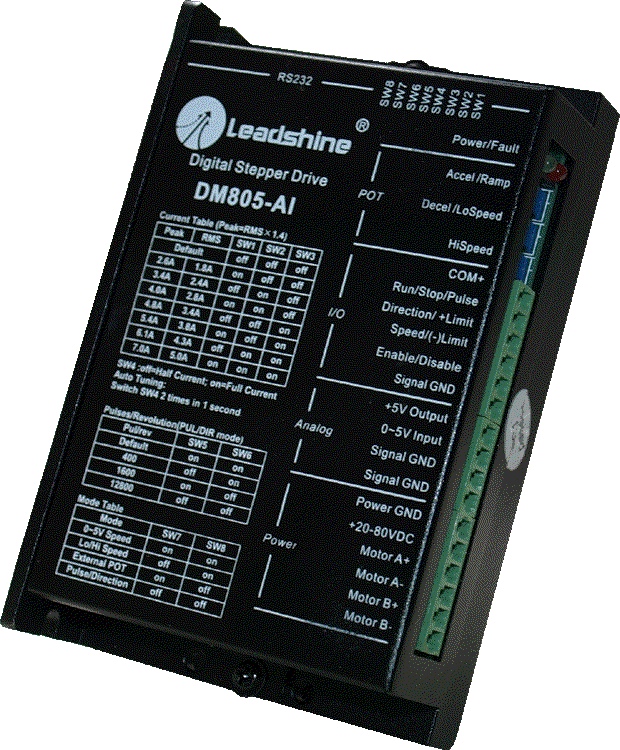

DM805-AI Analog Input Stepper Motor Driver

https://electronics123.odoo.com/web/image/product.template/8627/image_1920?unique=71c9ef5
(0 review)

SKU : SMC-015
Quantity on Hand : 0
Skill Level : Assembled and Tested

Buy 10, Get 5% Off!
Buy 100, Get 10% Off!

SMC-015

145.00 145.0 USD 145.00

145.00

Not Available For Sale

  • WeightMajor
  • WeightMinor

This combination does not exist.

Add to cart

Description: The DM805-AI is a 0-5V input stepper drive with built-in oscillator which is based on the latest digital control algorithm. It brings a unique level of system smoothness, providing optimum torque and nulls mid-range instability. Motor self-test and parameter auto-setup technology offers optimum responses with different motors and easy-to-use. The driven motors can run with much smaller noise, lower heating, smoother movement than most of the drivers in the markets. Its unique features make the DM805-AI an ideal solution for applications that require low-speed smoothness.

The three built-in potentiometers are used to preset and adjust the velocity, acceleration and deceleration. In 0-5V speed mode, the motor speed is controllable and follows the analog 0-5V input. In Low/HIGH speed mode, the motor speed is selected by digital input and adjusted by the high/low speed potentiometers. The user can run the motor with the least configuration and connection. In position mode, the DM805-AI is a traditional stepper drive. There is a 5V power supply output for customer use.

Features:

  • Anti-Resonance, provides optimum torque and nulls mid-range instability
  • Motor self-test and parameter auto-setup technology, offers optimum responses with different motors
  • Multi-Stepping allows a low resolution step input to produce a higher microstep output for smooth system performance
  • Command Source: 0-5V, built-in potentiometer and pulse
  • Two preset velocity and adjust by built-in potentiometer
  • Preset acceleration/deceleration and adjust by built-in potentiometer
  • Velocity control mode via analog 0-5V and position control mode via pulse
  • Built-in pulse generator nulls external motion controller
  • Supply voltage up to +80 VDC
  • Output current programmable, from 0.3A -5.0A (RMS)
  • TTL compatible and optically isolated digital input
  • Automatic current reduction
  • Over-voltage, over-current, phase-error protection
