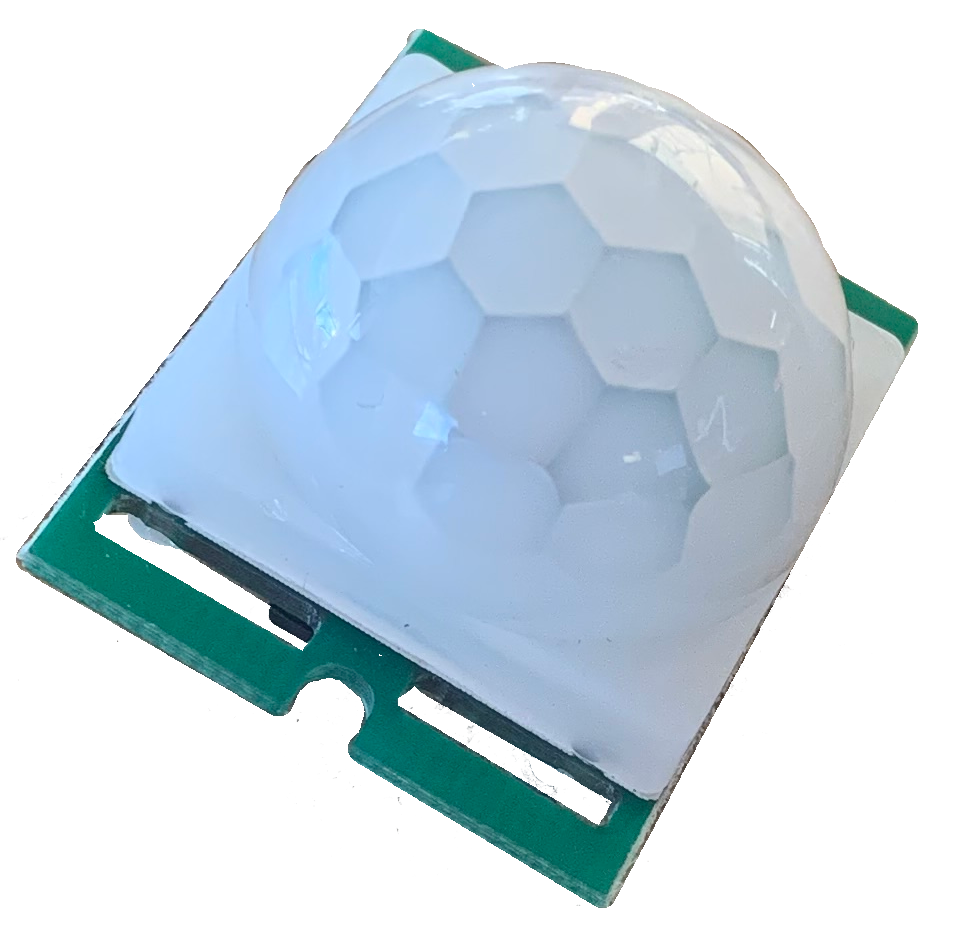

Description: SL620 human body induction module is an automatic control product based on infrared technology. It has high sensitivity, high reliability, and ultra-low voltage working mode. It is widely used in all kinds of automatic induction equipment, especially in dry battery-powered automatic control products.
Working Voltage Range DC1.8-28V
When the current is less than 50uA, 5V
Level Output High 3V/Low 0V
Delay time default 10S (5-200S adjustable) can produce zero seconds-10 minutes
Trigger mode repeated trigger (default)
Blockade time default 2.5S can be produced in a range of zero seconds - tens of seconds
The external dimension of the PCB is 32.7mmx24mm.
Induction Angle < 120 Degree Cone Angle (Visual Lens Performance)
Induction distance up to 20 meters (visual lens performance)
Working temperature - 20-+85 degrees
Induction Lens Size Diameter: 23mm (Default)
