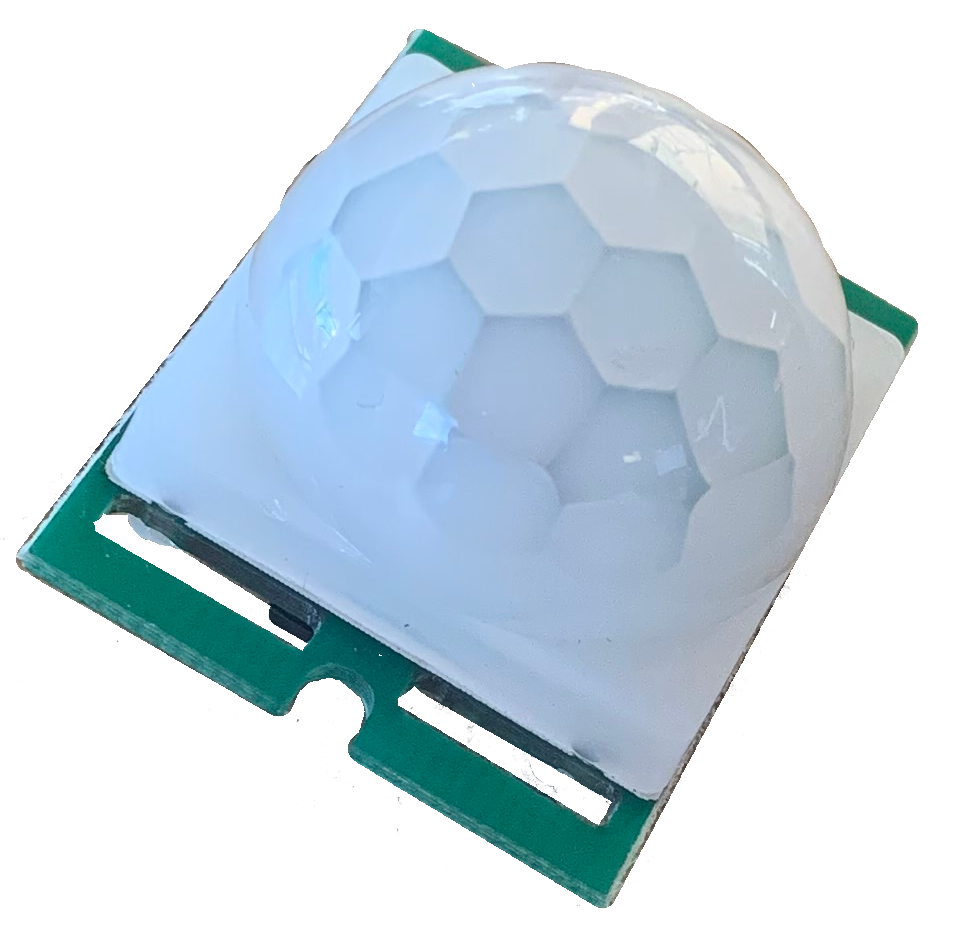

SL620 PIR Sensor Module (High/Low Output)

(0 review)

SKU : SL620
Quantity on Hand : 47
Skill Level : Assembled and Tested

Buy 10, Get 5% Off!
Buy 100, Get 10% Off!

6.95 6.95 USD 6.95

6.95

  • WeightMajor
  • WeightMinor

This combination does not exist.

Terms and Conditions

              Description: SL620 human body induction module is an automatic control product based on infrared technology. It has high sensitivity, high reliability, and ultra-low voltage working mode. It is widely used in all kinds of automatic induction equipment, especially in dry battery-powered automatic control products.

              Technical Parameters:

              • Working Voltage Range DC1.8-28V

              • When the current is less than 50uA, 5V

              • Level Output High 3V/Low 0V

              • Delay time default 10S (5-200S adjustable) can produce zero seconds-10 minutes

              • Trigger mode repeated trigger (default)

              • Blockade time default 2.5S can be produced in a range of zero seconds - tens of seconds

              • The external dimension of the PCB is 32.7mmx24mm.

              • Induction Angle < 120 Degree Cone Angle (Visual Lens Performance)

              • Induction distance up to 20 meters (visual lens performance)

              • Working temperature - 20-+85 degrees

              • Induction Lens Size Diameter: 23mm (Default)
