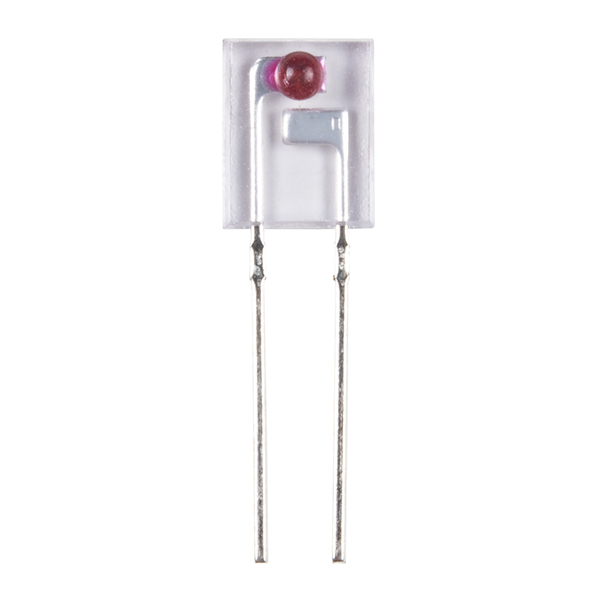

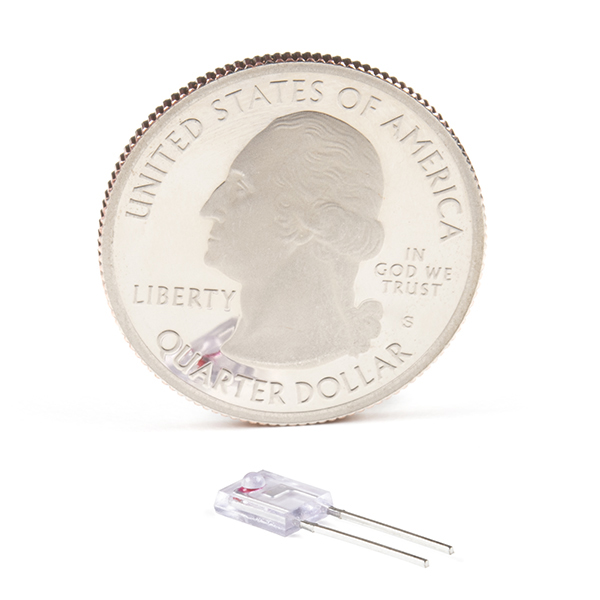

Infrared Emitter

https://electronics123.odoo.com/web/image/product.template/12308/image_1920?unique=71c9ef5
(0 review)

SKU : SEN-18772
Quantity on Hand : 15
Skill Level : Component or Part

Buy 10, Get 5% Off!
Buy 100, Get 10% Off!

1.65 1.6500000000000001 USD 1.65

1.65

Not Available For Sale

  • WeightMajor
  • WeightMinor

This combination does not exist.

Add to cart

Share

Description:

An Infrared emitter, or IR emitter, is a source of light energy in the infrared spectrum. This little part is a light emitting diode (LED) that is used in order to transmit infrared signals from a remote control. This simple device operates at 940nm and works well for generic IR systems. This emitter is driven up to 50mA with a current limiting resistor as with any LED device.

Features:

  • Continuous Forward Current: 50mA
  • Reverse Voltage: 5V
  • Operating Temperature: -25~+85°C
  • Wavelength: 940nm
  • Voltage - Forward (Vf) (Typ): 1.2V
  • Viewing Angle: 60°
  • Orientation: Side View
