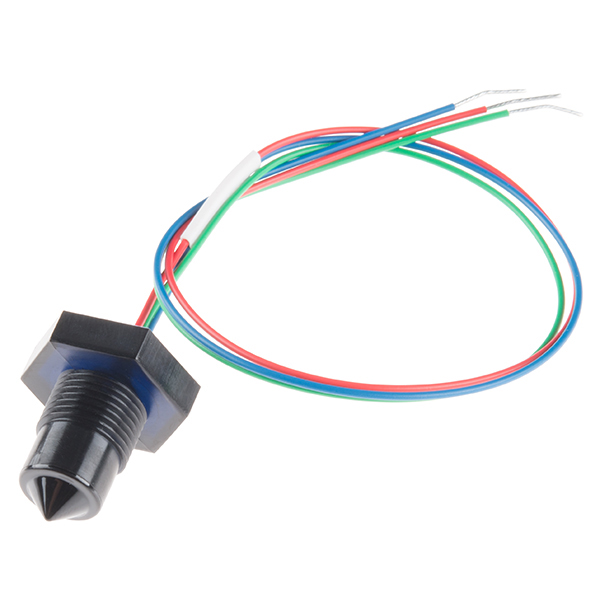

SST Liquid Level Sensor

(0 review)

SKU : SEN-13835
Quantity on Hand : 3
Skill Level : Assembled and Tested
ROHS Compliant

Buy 10, Get 5% Off!
Buy 100, Get 10% Off!

28.95 28.95 USD 28.95

28.95

  • WeightMajor
  • WeightMinor

This combination does not exist.

Terms and Conditions

Share

Description: The SST Liquid Level Sensor provides single point liquid detection via a TTL compatible push/pull output. This optical liquid level sensor features a miniature design that allows for installation in areas where space is limited. Thanks to its minimal solid state design, this sensor has been built without moving or mechanical parts that can be jammed and stop working.

An infra-red LED and phototransistor accurately positioned at the base of the sensing tip ensure good optical coupling between the two when the sensor is in air. When the sensing tip is immersed in liquid, the infra-red light escapes from the cone, causing a change in the amount of light present at the phototransistor, which makes the output change state.

Features:

  • Supply Voltage: +4.5 Vdc to +15.4Vdc
  • Output Current: 100mA
  • Temperature Range: -25 to +80⁰C
  • Polysulphone Housing Tip
  • M12 threaded connector (mounted from outside)
