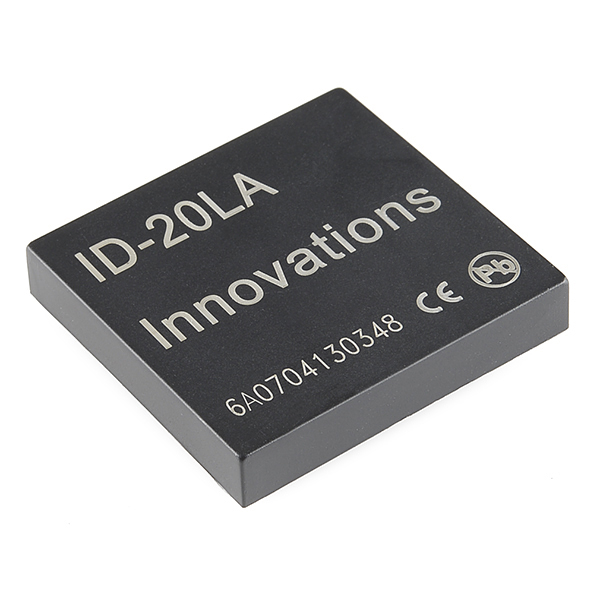

RFID Reader ID-20LA (125 kHz)

https://electronics123.odoo.com/web/image/product.template/5236/image_1920?unique=1c00a7c
(0 review)

SKU : SEN-11828
Quantity on Hand : 3
Skill Level : Assembled and Tested
ROHS Compliant

Buy 10, Get 5% Off!
Buy 100, Get 10% Off!

SEN-11828

37.95 37.95 USD 37.95

37.95

Not Available For Sale

  • WeightMajor
  • WeightMinor

This combination does not exist.

Add to cart

Share

Description: RFID (radio-frequency identification) is the wireless non-contact use of radio-frequency electromagnetic fields, for the purposes of identifying and tracking tags attached to objects. This is the ID-20LA, a very simple to use RFID reader module from ID Innovations. With a built in antenna, the only holdup is the 2mm pin spacing. Power the module, hold up a 125kHz card, and get a serial string output containing the unique ID of the card.

Note:
The new ID-20LA is essentially the same as the older ID-20, but has a lower input voltage.

Features:
  • 2.8 - 5V supply
  • 125kHz read frequency
  • EM4001 64-bit RFID tag compatible
  • 9600bps TTL and RS232 output
  • Magnetic stripe emulation output
  • Read range of 180mm
  • Dimensions: 38x40x7mm
