Temperature Sensor - Waterproof (DS18B20) with 6 ft wire

https://electronics123.odoo.com/web/image/product.template/8354/image_1920?unique=11faaf0
(0 review)

SKU : SEN-11050
Quantity on Hand : 4
Skill Level : Assembled and Tested
ROHS Compliant

Buy 10, Get 5% Off!
Buy 100, Get 10% Off!

SEN-11050

14.95 14.950000000000001 USD 14.95

14.95

Not Available For Sale

  • WeightMajor
  • WeightMinor

This combination does not exist.

Add to cart

Description: This sealed digital temperature probe lets you precisely measure temperatures in wet environments with a simple 1-Wire interface. The DS18B20 provides 9 to 12-bit (configurable) temperature readings over a 1-Wire interface, so that only one wire (and ground) needs to be connected from a central microprocessor.

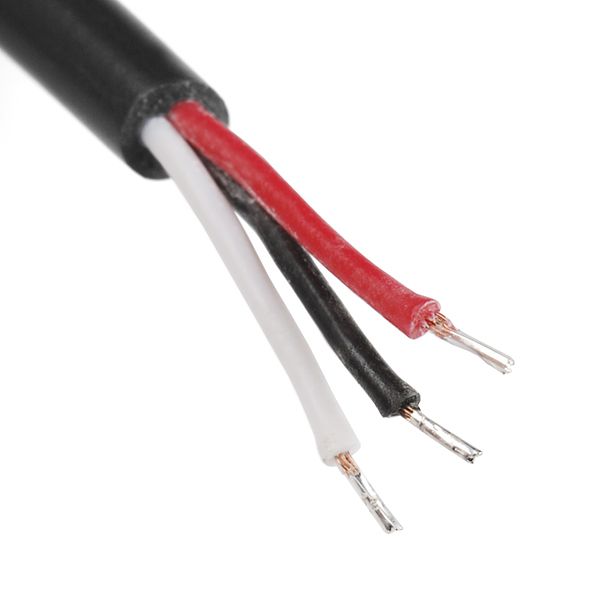

Note: The pinout for this sensor is as follows: RED=Vcc BLACK=GND WHITE=SIG


SEN-11050 & SEN-18367 use the exact same sensor, the difference is the cable on SEN-18367 is rated for the full 125°C where only the sensor is rated that for on SEN-11050.


Features:

  • 3.0-5.5V input voltage
  • Waterproof
  • -55°C to+125°C temperature range
  • ±0.5°C accuracy from -10°C to +85°C
  • 1 Wire interface

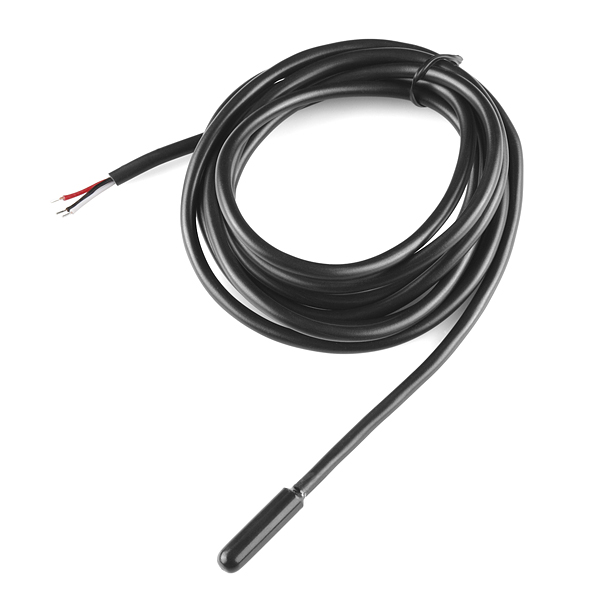

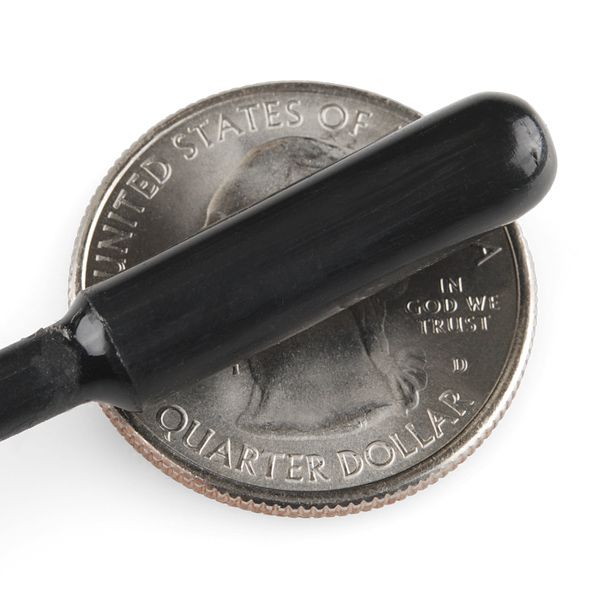

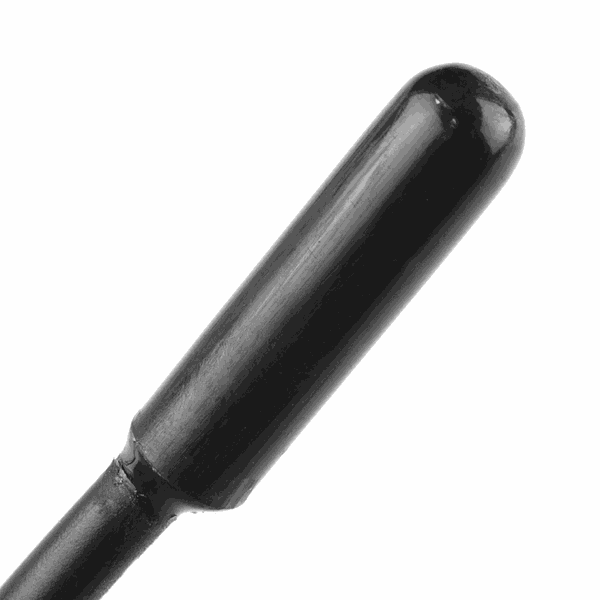

  • Probe is 7mm in diameter and roughly 26mm long. Overall length (including wire) is 6 feet.

Documentation and Downloads
