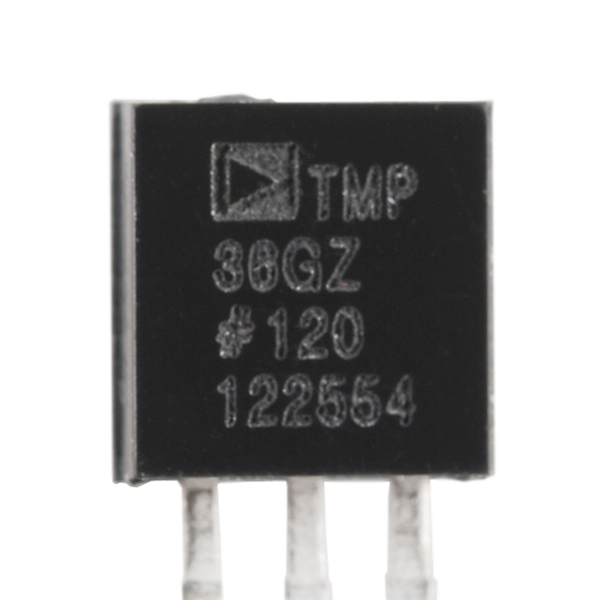

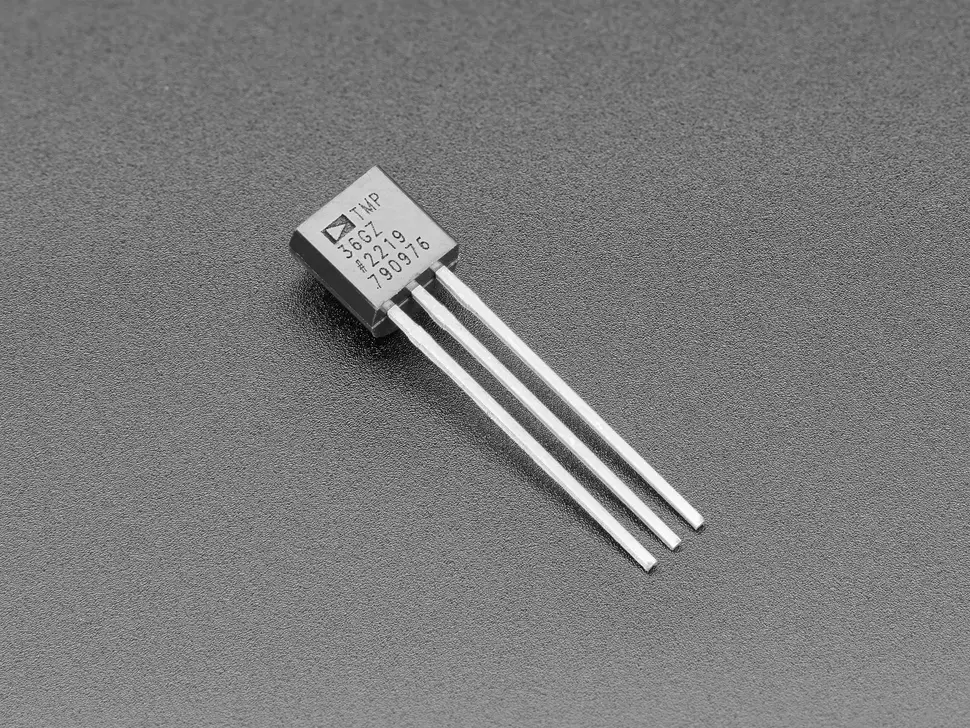

Temperature Sensor - TMP36

https://electronics123.odoo.com/web/image/product.template/11297/image_1920?unique=a9141aa
(0 review)

SKU : SEN-10988
Quantity on Hand : 1
Skill Level : Component or Part
ROHS Compliant

Buy 10, Get 5% Off!
Buy 100, Get 10% Off!

SEN-10988

2.95 2.95 USD 2.95

2.95

Not Available For Sale

    This combination does not exist.

    ADD TO CART

    Description: This is the same temperature sensor that is included in our SparkFun Inventor's Kit. The TMP36 is a low voltage, precision centigrade temperature sensor. It provides a voltage output that is linearly proportional to the Celsius temperature. It also doesn't require any external calibration to provide typical accuracies of ±1°C at +25°C and ±2°C over the −40°C to +125°C temperature range. We like it because it's so easy to use: Just give the device a ground and 2.7 to 5.5 VDC and read the voltage on the Vout pin. The output voltage can be converted to temperature easily using the scale factor of 10 mV/°C.

    Features:

    • Voltage Input: 2.7 V to 5.5 VDC
    • 10 mV/°C scale factor
    • ±2°C accuracy over temperature
    • ±0.5°C linearity
    • Operating Range: −40°C to +125°C
