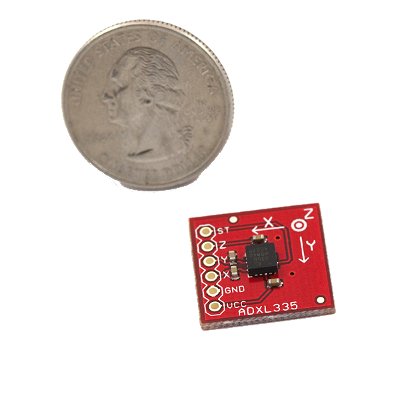

Triple Axis Accelerometer Breakout - ADXL335

https://electronics123.odoo.com/web/image/product.template/5226/image_1920?unique=8e67059
(0 review)

SKU : SEN-09269
Quantity on Hand : 5
Skill Level : Assembled and Tested
ROHS Compliant

Buy 10, Get 5% Off!
Buy 100, Get 10% Off!

SEN-09269

19.95 19.95 USD 19.95

19.95

Not Available For Sale

  • WeightMajor
  • WeightMinor

This combination does not exist.

Add to cart

Description: Breakout board for the 3 axis ADXL335 from Analog Devices. This is the latest in a long, proven line of analog sensors - the holy grail of accelerometers. The ADXL335 is a triple axis accelerometer with extremely low noise and power consumption - only 320uA! The sensor has a full sensing range of +/-3g.

There is no on-board regulation, provided power should be between 1.8 and 3.6VDC.

Board comes fully assembled and tested with external components installed. The included 0.1uF capacitors set the bandwidth of each axis to 50Hz.

Dimensions: 0.7x0.7"
