Piezo Vibration Sensor - Large with Mass
SKU : SEN-09197
Quantity on Hand :
0
Skill Level : Component or Part
ROHS Compliant
Buy 10, Get 5% Off!
Buy 100, Get 10% Off!
30-day money-back guarantee
Free Shipping in the U.S. on Orders over $75
We offer worldwide shipping as well
Buy now and choose from several shipping methods
Description: This basic piezo sensor from Measurement Specialties is often used for flex, touch, vibration and shock measurements. A small AC and large voltage (up to +/-90V) is created when the film moves back and forth. A simple resistor should get the voltage down to ADC levels. Can also be used for impact sensing or a flexible switch.

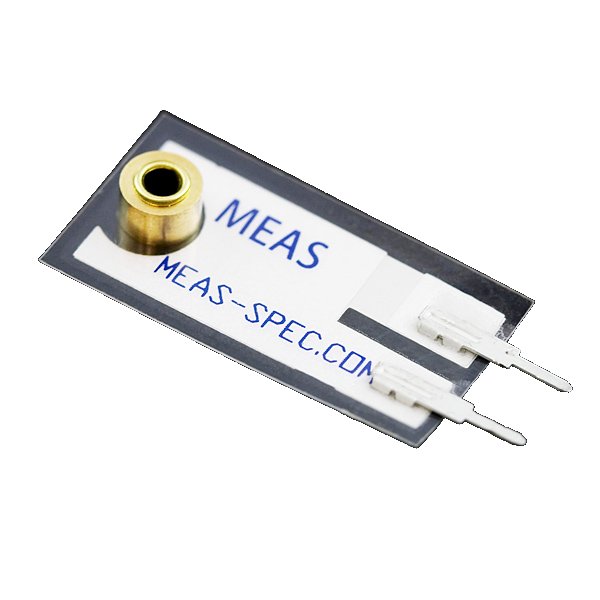

Comes with solderable crimp pins and a mass attached to the tip. This mass increases the sensitivity to motion.
Features:
- Flexible PVDF Piezo Polymer Film
- Wide dynamic range
- Laminated for higher voltage output
- 0.1" breadboard friendly leads
Documentation and Downloads
- Datasheet (LDT0-028K)
- Hookup Guide
- Technical Manual
