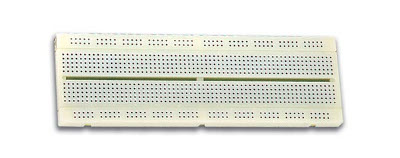

High-Q Breadboard - 840 Holes
SKU : SD12N
Quantity on Hand :
2
Skill Level : Component or Part
ROHS Compliant
Buy 10, Get 5% Off!
Buy 100, Get 10% Off!
30-day money-back guarantee
Free Shipping in the U.S. on Orders over $75
We offer worldwide shipping as well
Buy now and choose from several shipping methods
Features:
Specifications:
- base socket (see figure): twin columns of 5 x 64 terminals are separated by a 0.3" center channel
- bus strip (see figure): 4 buses of 25 connected terminals are arranged in 4 rows
Specifications:
- material:
- external body is made of ABS
- the internal interconnected clips are made of an alloy of silver and nickel
- base socket: 1
- bus strip: 2
- tie points: 840
- 14-pins IC capacity: 9
- binding post: 0
- dimensions: 6.6" x 2.2" x 0.4"
- weight: 3.4oz
- jumper wire set: WJW70 (not included)
