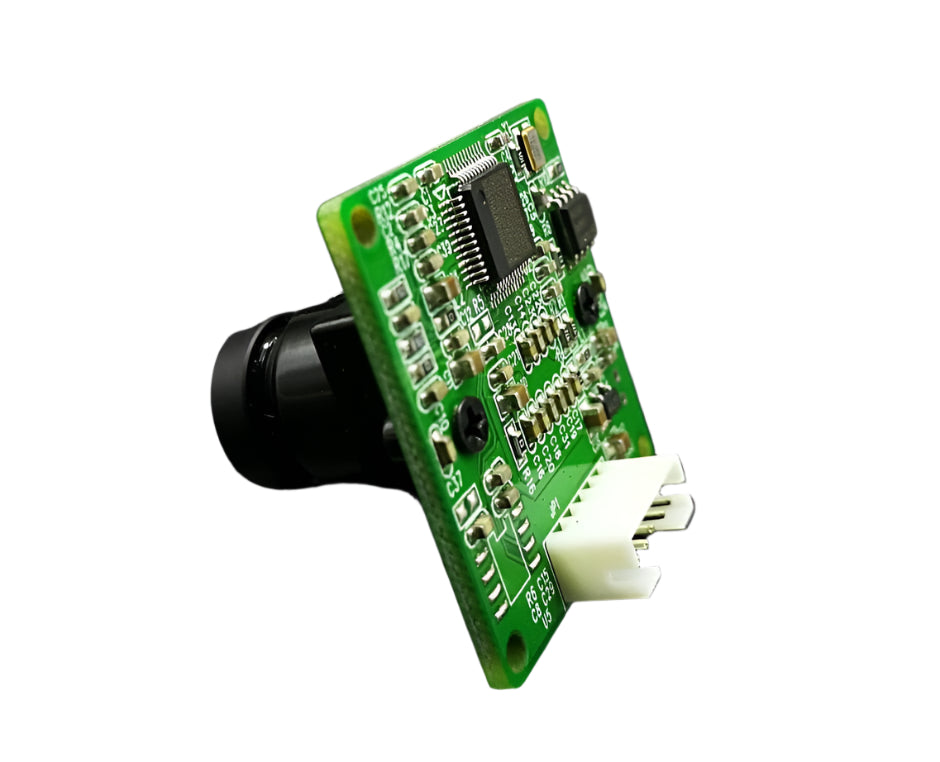

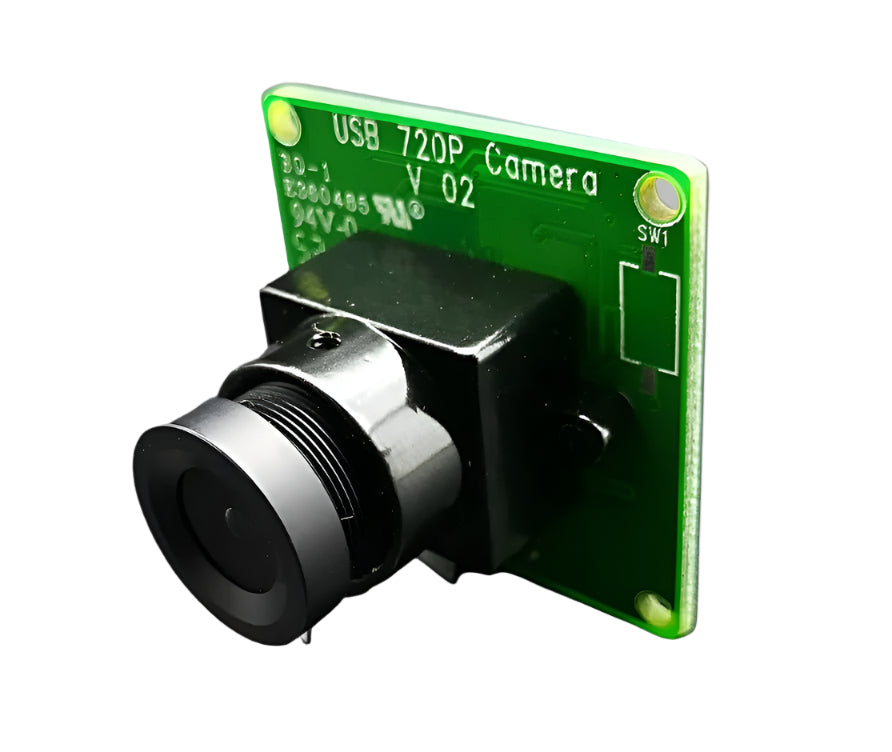

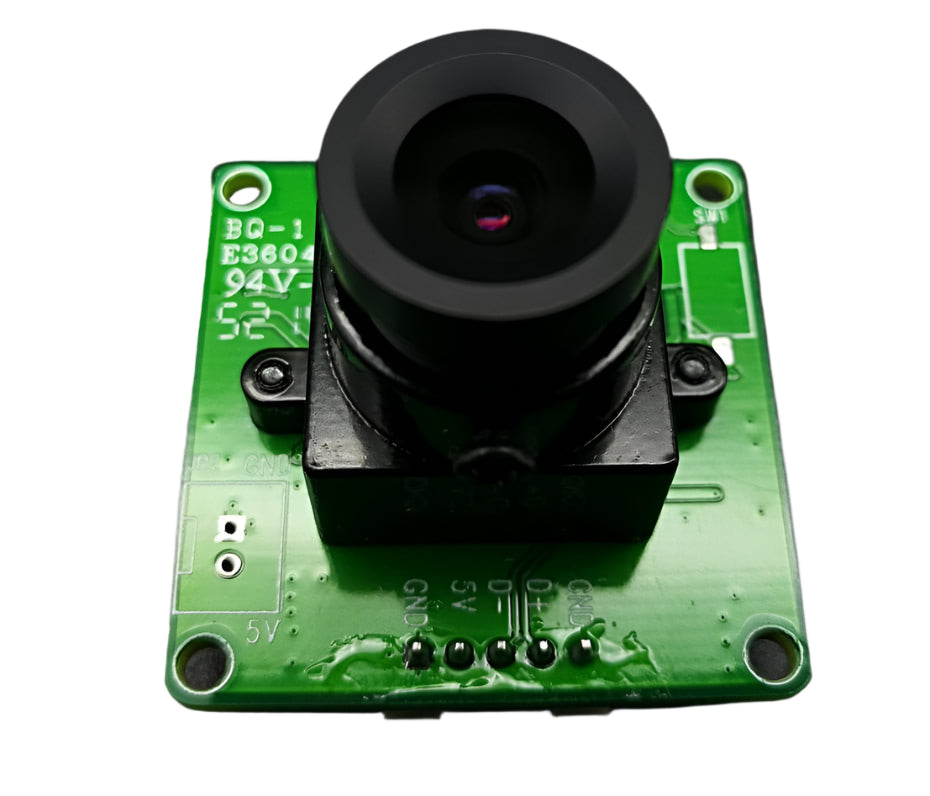

SB102H 720P HD USB Camera Module (OV9712, UVC, 32x32mm)

The 720P HD USB 2.0 CMOS board camera module (model: SB102H) from SICUBE is ideal for security systems, portable video systems, video phones, industrial machine monitoring, and toys. It uses a high-quality OmniVision image sensor and MJPEG compression for high frame-rate video output. Designed for equipment manufacturers, experimenters, and hobbyists.

NOTE: No cable included (unlike SB101D / BB317 kit).

Features:

• 720P CMOS sensor for high quality image and low power consumption
• High-speed USB 2.0 interface
• Active pixel technology for sharp image and accurate color reproduction
• Superior low-light performance
• Advanced MJPEG compression
• Super small outline and thin profile for embedded applications
• High frame rate: 30–60 fps
• High quality changeable lens for true-to-life undistorted color
• Bus powered with low power consumption — ideal for portable equipment
• UVC compliant (driver-free on supported OS)
• Supports embedded systems

Applications: Car and ship control, electrical equipment, oil field equipment, industrial equipment, remote site monitoring, environmental monitoring, car tracking systems, etc.

Specifications:

• Image Sensor: OmniVision 1/4" color CMOS OV9712
• DSP: SONIX SN9C291
• Effective Pixels: 1280 (H) × 720 (V)
• Signal Output: USB 2.0 and 1.1 serial data
• Output Formats: YUV / M-JPEG / PNG / BMP / JPG
• Frame Rate: M-JPEG 60 fps @ 640 × 480 (high frame rate 30–60 fps)
• Operating System: Linux 2.6.26 or above, Windows 7, Windows 8, Android, Windows CE
• Operating Temperature: −30°C to 65°C
• Power Consumption: 50 mA
• Dimensions: 32 mm × 32 mm
• Cable: not included
