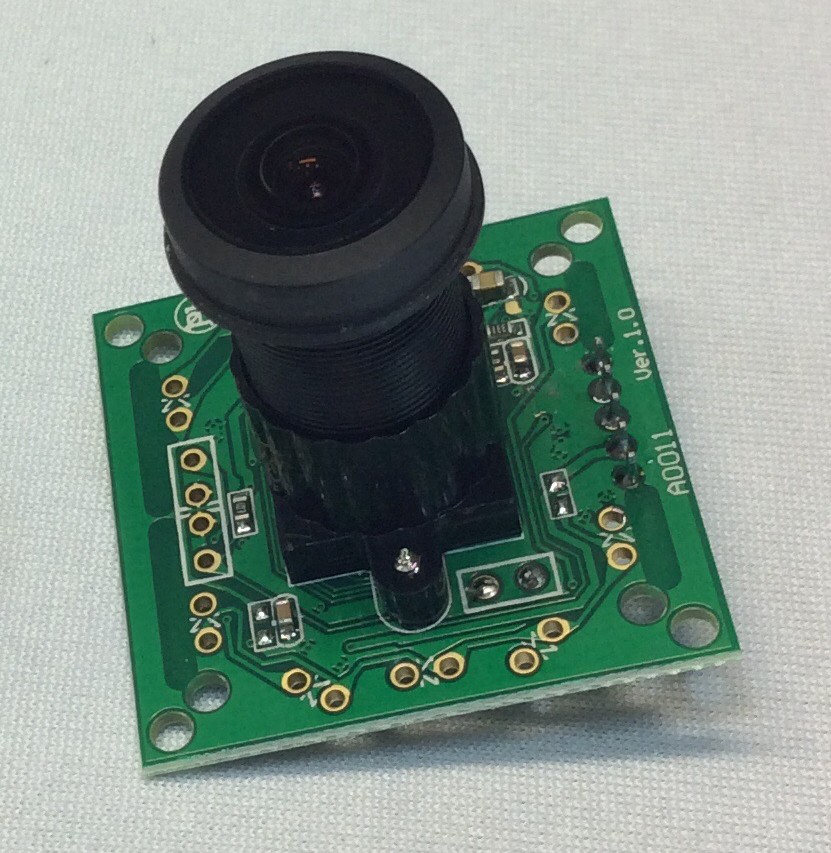

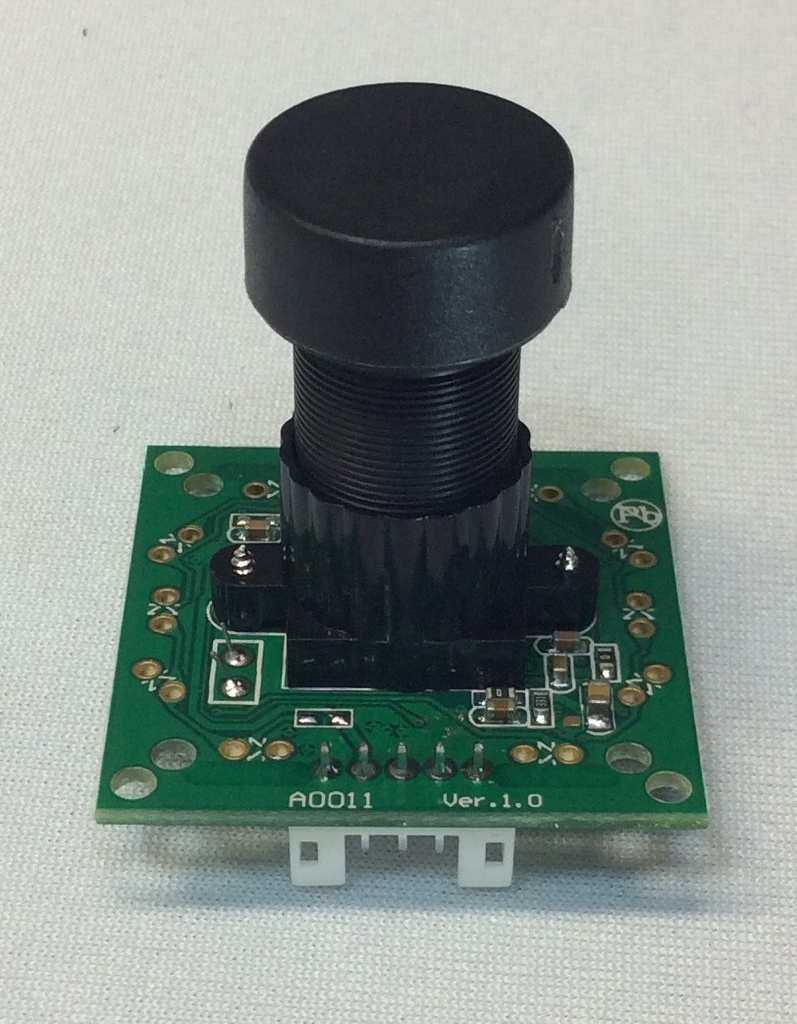

SB101-K106C USB CMOS Board Camera Module (Fish-Eye lens) with Cable

https://electronics123.odoo.com/web/image/product.template/10087/image_1920?unique=5013cf0
(0 review)

SKU : SB101-K106C
Quantity on Hand : 0
Skill Level : Assembled and Tested

Buy 10, Get 5% Off!
Buy 100, Get 10% Off!

SB101-K106C

52.85 52.85 USD 52.85

52.85

Not Available For Sale

  • WeightMajor
  • WeightMinor

This combination does not exist.

Add to cart

Description:
This low-cost USB CMOS board camera module is ideal for many applications such as security systems, portable video systems, video phones, industrial machine monitoring and toys. It uses high quality OmniVision image sensors. Although this camera is not designed as a consumer item, it remains a popular choice for equipment manufacturers, experimenters and hobbyists.


We tested this camera with Skype on a computer running Windows 7 & Linux by plugging it in and rebooting the system. It showed up with no problems.

NOTE: CAMERA DOES COME WITH TYPE B USB FEMALE TO 5 PIN JST CONNECTOR CABLE - PRODUCT# BB317

Features:

  • A high-quality Fisheye lens with a 190-degree field of view
  • CMOS VGA sensor for high quality image and low power consumption
  • Hi-speed USB 2.0 interface for high resolution PC camera interface
  • Active pixel technology for sharp image and accurate color reproduction
  • Superior low-light performance - ideal for any lighting condition
  • Super small outline and thin profile for embedded applications
  • High frame rate - will deliver 30 fps in VGA
  • Bus powered with low power consumption - great for portable equipment
  • UVC for use in Linux, Windows XP SP2 or above
  • Camera with UVC
Additional Details:

Specifications:
  • 0.3M pixels
  • OV7725 image sensor - 1/4" color CMOS

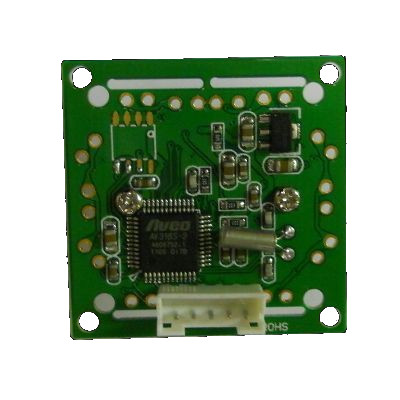

  • DSP - AV318S
  • Effective Pixels: 640(H) x 480(V)
  • Signal Output - serial data for USB standard compliant 2.0 & 1.1
  • 30 fps @ 640 x 480
  • O/S Windows XP, Vista, win7, & Linux
  • UVC - Windows XP SP2 or above
  • Operating temperature: 0-65 C
  • Power consumption: 50mA
  • Size 32mm X 32mm
Lens Specs:
  • EFL=1.75
  • BFL=4.6mm
  • BFL (M)=4.3mm
  • F/NO=2.2
  • FIELD OF VIEW (D) = 190 degrees
  • TV DISTORTION: -33%
  • CHIEF RAY ANGLE <15 degrees
  • RELATIVE ILLUMINATION = 90%
  • CONSTRUCTION: 4G
  • THREAD: M12*PO.5
