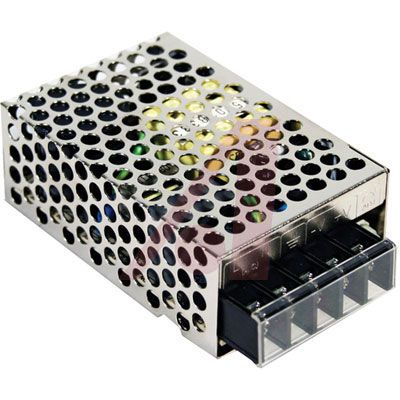

25W Single Output Switching Power Supply - 12V 2.1A

(0 review)

SKU : RS-25-12
Quantity on Hand : 26
Skill Level : Assembled and Tested
ROHS Compliant

Buy 10, Get 5% Off!
Buy 100, Get 10% Off!

RS-25-12

16.95 16.95 USD 16.95

16.95

  • WeightMajor
  • WeightMinor

This combination does not exist.

Share

Features:

  • Universal AC input / Full range

  • Protections: Short circuit / Overload / Over voltage

  • Cooling by free air convection

  • LED indicator for power on

  • 100% full load burn-in test

  • All using 105℃ long life electrolytic capacitors

  • Withstand 300VAC surge input for 5 second

  • High operating temperature up to 70℃

  • Withstand 5G vibration test

  • High efficiency, long life and high reliability

  • Years warranty

  • No load power consumption<0.5W

Specifications:

  • Rated Current: 2.1 A

  • Rated Power: 25.2 W

  • Brand/Series: RS Series

  • Configuration: Enclosed

  • Dimensions: 3.07 L x 2.00 W x 1.38 H (inch)

  • Mounting Type: Panel

  • Number of Outputs: 1

  • Operation: Switching

  • Primary Type: AC-DC

  • Special Features: Three Year Warranty

  • Type: Commercial

  • Voltage, Input: 88-264 VAC
