Hobby Gearmotor - 140 RPM (Pair)

https://electronics123.odoo.com/web/image/product.template/10062/image_1920?unique=73b93d4
(0 review)

SKU : ROB-13302
Quantity on Hand : 4
Skill Level : Component or Part
ROHS Compliant

Buy 10, Get 5% Off!
Buy 100, Get 10% Off!

ROB-13302

5.95 5.95 USD 5.95

5.95

Not Available For Sale

  • WeightMajor
  • WeightMinor

This combination does not exist.

Add to cart

Share

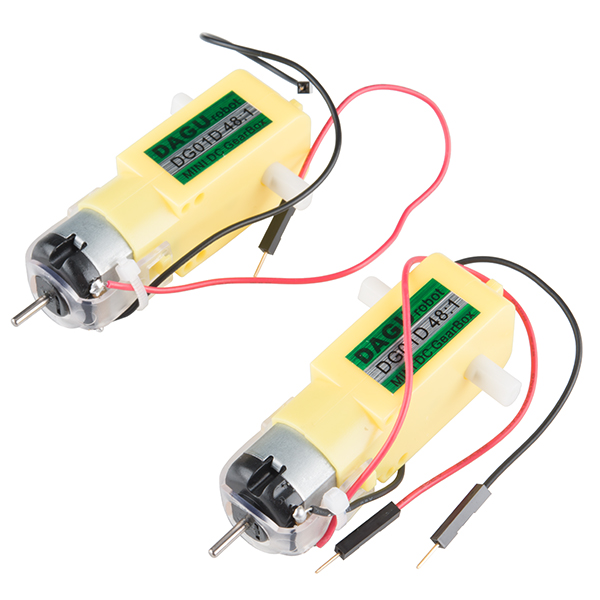

Description: These are a pair of hobby gearmotors from DAGU. These gearmotors are the same ones recommended for use in the Shadow Chassis and offer a cheap and easy-to-use setup to get your wheels turning. Each Hobby Gearmotor also possess a 9mm long output on a straight axis.

These gearmotors require a voltage of 4.5V with a no load current of 190mA while possessing a gearbox ratio of 48:1 and a wheel speed of 140 RPM unloaded.

Every motor order is sold in packs of two.

Note: The RPM listed in the datasheet below is listed as 90RPM. Based on our own testing we found the gearmotors can actually achieve a No Load Speed of about 140 RPM.

Features:

  • Suggested Voltage: 4.5VDC
  • No Load Speed: 140RPM
  • No Load Current: 190mA
  • Max. Load Current: 250mA
  • Torque: 800 gf-cm
