Servo - Generic High Torque (Standard Size)

(0 review)

SKU : ROB-11965
Quantity on Hand : 1
Skill Level : Component or Part
ROHS Compliant

Buy 10, Get 5% Off!
Buy 100, Get 10% Off!

13.95 13.950000000000001 USD 13.95

13.95

    This combination does not exist.

    Terms and Conditions

    Share

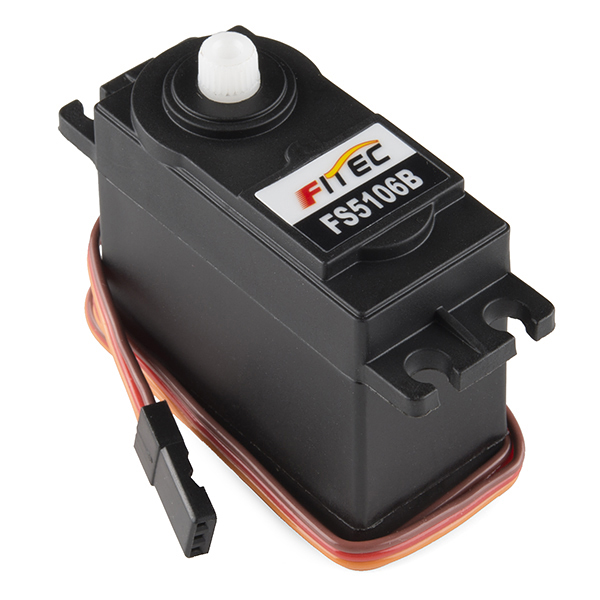

    Description: Here is a powerful, low-cost, reliable servo for all your mechatronic needs. This servo is able to take in 6 volts and deliver 83.47 oz-in. of maximum torque at 0.16 sec/60°

    This is a tough little servo with a standard 3 pin power and control cable, and all hardware listed below.

    Includes:

    1x FS5106B High Torque Servo

    1x Double Arm Horn

    1x Circle Horn

    1x Four Point Horn

    1x Six Point Horn

    2x 3x10mm Phillips Screw

    4x 2x13mm Mounting Phillips Screw

    4x Rubber Grommets

    4x Brass Eyelets

    Features:

    Voltage: 4.8-6.0 Volts

    Torque: 69.56/83.47 oz-in. (4.8/6.0V)

    Speed: 0.18/0.16 sec/60° (4.8/6.0V)

    Direction: Counterclockwise 1000-2000usec

    Rotation: 180°

    Dual Ball Bearing

    Nylon Gears

    25T Spline (Futaba 3F)* 40.8 x 20.1 x 38mm

    Wire Length: 300mm

    Weight: 40g

    Documentation and Downloads
