Servo - Generic High Torque (Standard Size)

https://electronics123.odoo.com/web/image/product.template/11171/image_1920?unique=1b7e5bf
(0 review)

SKU : ROB-11965
Quantity on Hand : 1
Skill Level : Component or Part
ROHS Compliant

Buy 10, Get 5% Off!
Buy 100, Get 10% Off!

ROB-11965

13.95 13.950000000000001 USD 13.95

13.95

Not Available For Sale

This combination does not exist.

Add to cart

Share

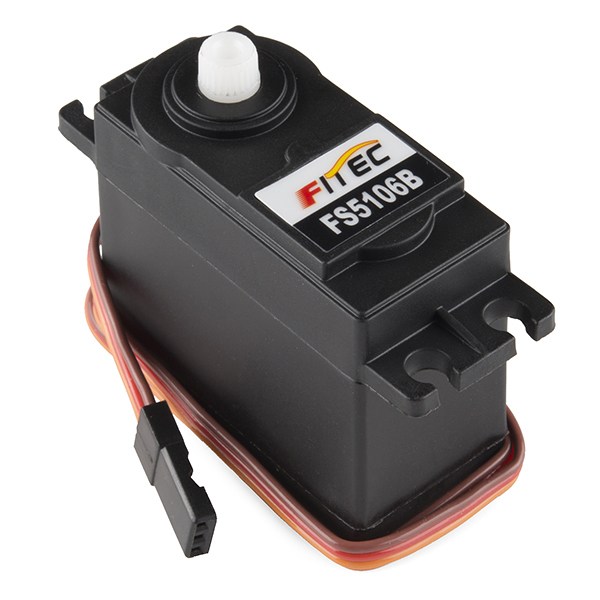

Description: Here is a powerful, low-cost, reliable servo for all your mechatronic needs. This servo is able to take in 6 volts and deliver 83.47 oz-in. of maximum torque at 0.16 sec/60°

This is a tough little servo with a standard 3 pin power and control cable, and all hardware listed below.

Includes:

1x FS5106B High Torque Servo

1x Double Arm Horn

1x Circle Horn

1x Four Point Horn

1x Six Point Horn

2x 3x10mm Phillips Screw

4x 2x13mm Mounting Phillips Screw

4x Rubber Grommets

4x Brass Eyelets

Features:

Voltage: 4.8-6.0 Volts

Torque: 69.56/83.47 oz-in. (4.8/6.0V)

Speed: 0.18/0.16 sec/60° (4.8/6.0V)

Direction: Counterclockwise 1000-2000usec

Rotation: 180°

Dual Ball Bearing

Nylon Gears

25T Spline (Futaba 3F)* 40.8 x 20.1 x 38mm

Wire Length: 300mm

Weight: 40g

Documentation and Downloads
