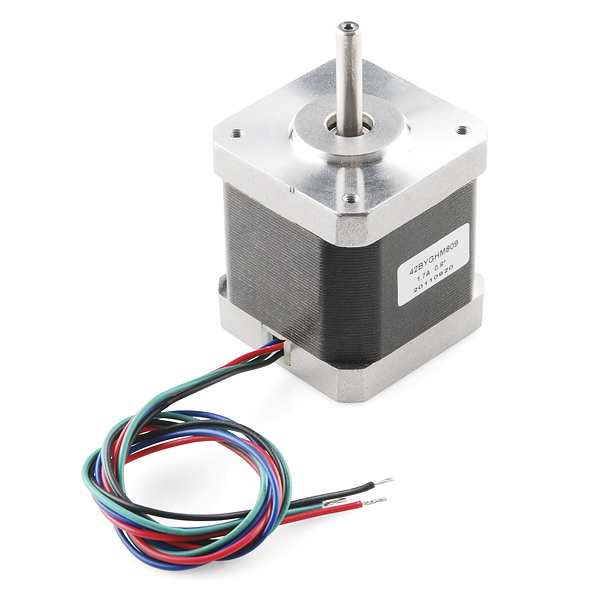

Stepper Motor - 68 oz.in (400 steps/rev)
SKU : ROB-10846
Quantity on Hand :
6
Skill Level : Assembled and Tested
ROHS Compliant
Buy 10, Get 5% Off!
Buy 100, Get 10% Off!
30-day money-back guarantee
Free Shipping in the U.S. on Orders over $75
We offer worldwide shipping as well
Buy now and choose from several shipping methods
Description: These steppers are a great way to get things moving, especially when positioning and repeatability is a concern.
This is a Bipolar motor.
Features:

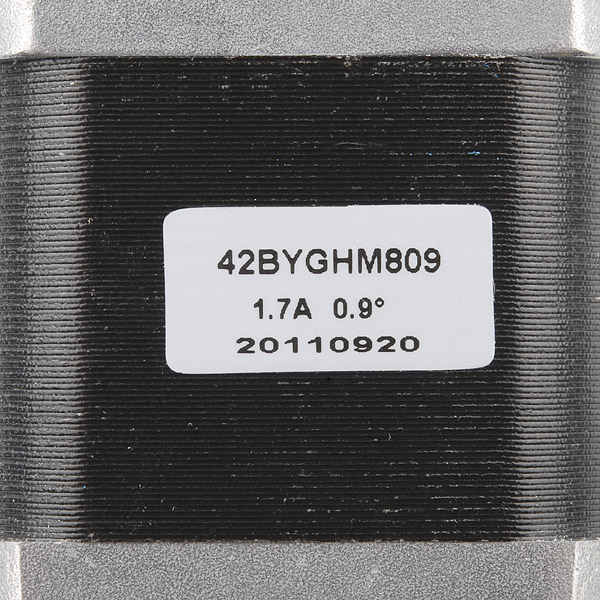

- Step Angle (degrees) : 0.9
- 2-Phase
- Rated Voltage: 3V
- Rated Current: 1.7A/Phase
- 5mm Diameter Drive Shaft
- Holding Torque: 48N.cm

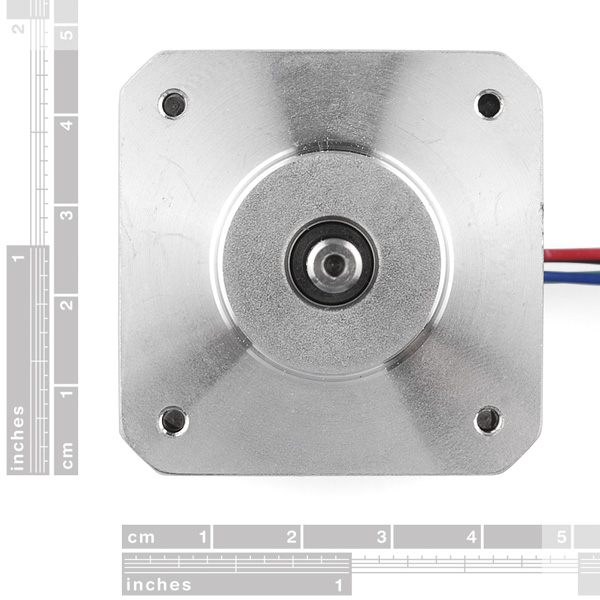

- NEMA 17 form factor
