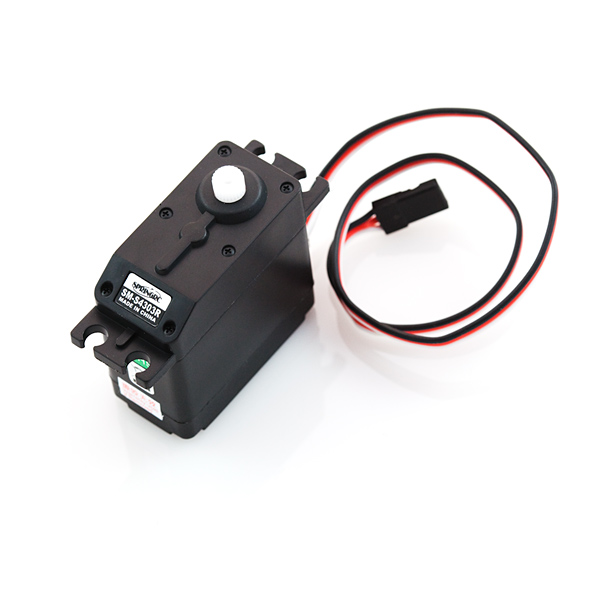

Servo - Generic High Torque Continuous Rotation (Standard Size) (SM-S4303R)
SKU : ROB-09347
Quantity on Hand : 4
Skill Level : Assembled and Tested
Buy 10, Get 5% Off!
Buy 100, Get 10% Off!
Description: Here, for all your mechatronic needs, is a simple, high quality continuous full-rotation servo motor. A standard 3-pin power and control cable is attached and all hardware shown is included.
- Continuous 360° rotation
- Rest point adjustment
- Operating voltage: 4.8-6.0VDC
- Top operating speed: 60-70RPM (4.8-6.0VDC respectively)
- Torque: 3.3-4.8 kg-cm (4.8-6.0VDC respectively)
- 4 plastic gears + 1 metal gear
- Double ball bearing
- 42 x 39.5 x 22.5mm
- Wire length: 30cm
- Weight: 44g
