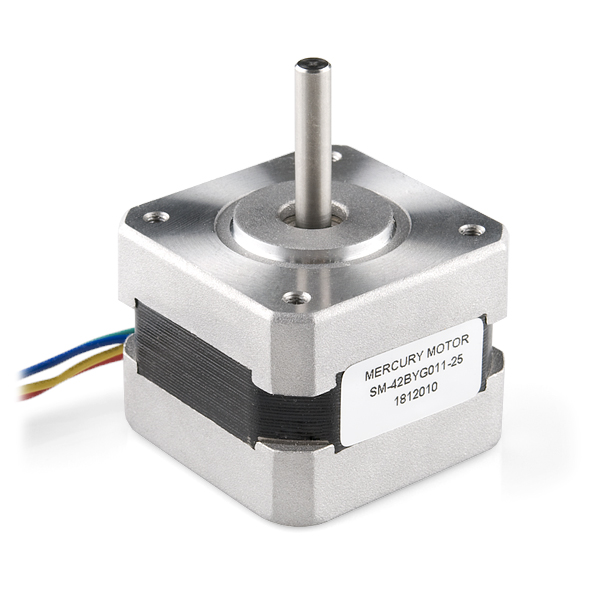

Bipolar Stepper Motor with Cable
SKU : ROB-09238
Quantity on Hand :
4
Skill Level : Assembled and Tested
Buy 10, Get 5% Off!
Buy 100, Get 10% Off!
30-day money-back guarantee
Free Shipping in the U.S. on Orders over $75
We offer worldwide shipping as well
Buy now and choose from several shipping methods
Description: This is a simple, but very powerful stepper motor with a 4-wire cable attached.
This is a Bipolar Motor.
Features:
This is a Bipolar Motor.
Features:
- Step Angle (degrees) :1.8
- 2 Phase
- Rated Voltage : 12V
- Rated Current : 0.33A
- Holding Torque : 2.3kg*cm
- 5mm Diameter Drive Shaft
- Winding resistance: 32.6 Ω
- Winding inductance: 48 mH
- Max flux linkage: 1.8 Vs
- Maximum Detent Torque: 0.016 N.M
- Total inertia (kg.m.m): 3.5 Kg.m.m
- Total friction (kg.m/s): 4 Kg.m/s
NEMA 17 Mounting Hole Pattern (31mm)
Motor Width: 42mm (1.67”)
