Bipolar Stepper Motor with Cable

https://electronics123.odoo.com/web/image/product.template/5184/image_1920?unique=c211b12
(0 review)

SKU : ROB-09238
Quantity on Hand : 5
Skill Level : Assembled and Tested

Buy 10, Get 5% Off!
Buy 100, Get 10% Off!

ROB-09238

19.95 19.95 USD 19.95

19.95

Not Available For Sale

  • WeightMajor
  • WeightMinor

This combination does not exist.

ADD TO CART

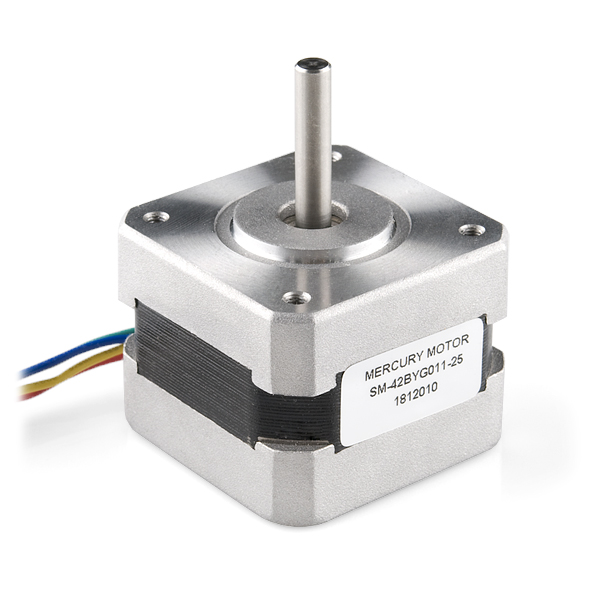

Description: This is a simple, but very powerful stepper motor with a 4-wire cable attached.

This is a Bipolar Motor.

Features:
  • Step Angle (degrees) :1.8
  • 2 Phase
  • Rated Voltage : 12V
  • Rated Current : 0.33A
  • Holding Torque : 2.3kg*cm
  • 5mm Diameter Drive Shaft
  • Winding resistance: 32.6 Ω
  • Winding inductance: 48 mH
  • Max flux linkage: 1.8 Vs
  • Maximum Detent Torque: 0.016 N.M
  • Total inertia (kg.m.m): 3.5 Kg.m.m
  • Total friction (kg.m/s): 4 Kg.m/s

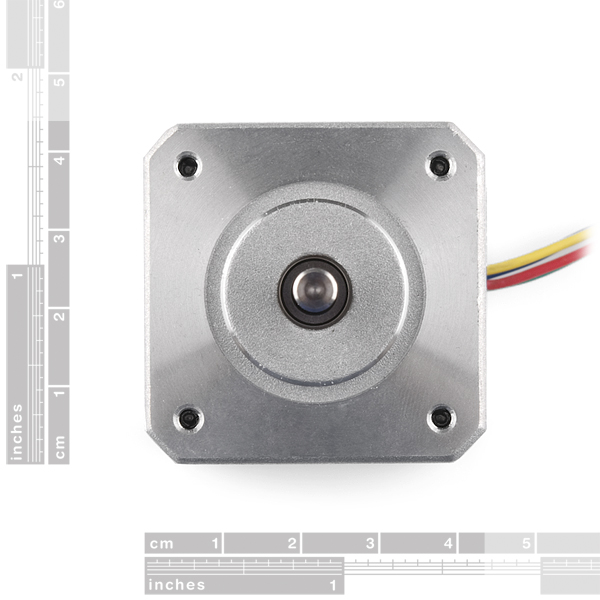

  • NEMA 17 Mounting Hole Pattern (31mm)

  • Motor Width: 42mm (1.67”)

Documentation and Downloads
