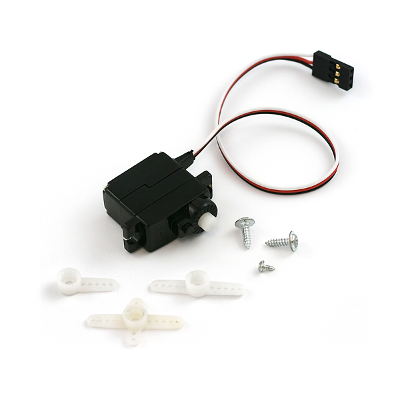

Description: Here is a simple, low-cost, high quality servo for all your mechatronic needs. Small servo with a standard 3 pin power, control cable, and mounting hardware. This servo is very similar in size and specifications to the Hitec HS-55. Includes hardware as shown.
- 3 pole ferrite, all nylon gear
- Top ball bearing
- Operating Voltage: 4.8V~6.0V
- Operating speed: 0.10sec/60 degree
- Output torque: 1.4kg/cm (19.6oz/in)
- Operating Range: ~170 degrees
- 22.8 x 11.8 x 20.6mm
- Weight: 9g
