Two 24VDC Relay Card

https://electronics123.odoo.com/web/image/product.template/8576/image_1920?unique=1b2d5f3
(0 review)

SKU : RLC-242
Quantity on Hand : 2
Skill Level : Assembled and Tested

Buy 10, Get 5% Off!
Buy 100, Get 10% Off!

RLC-242

21.50 21.5 USD 21.50

21.50

Not Available For Sale

  • WeightMajor
  • WeightMinor

This combination does not exist.

Add to cart

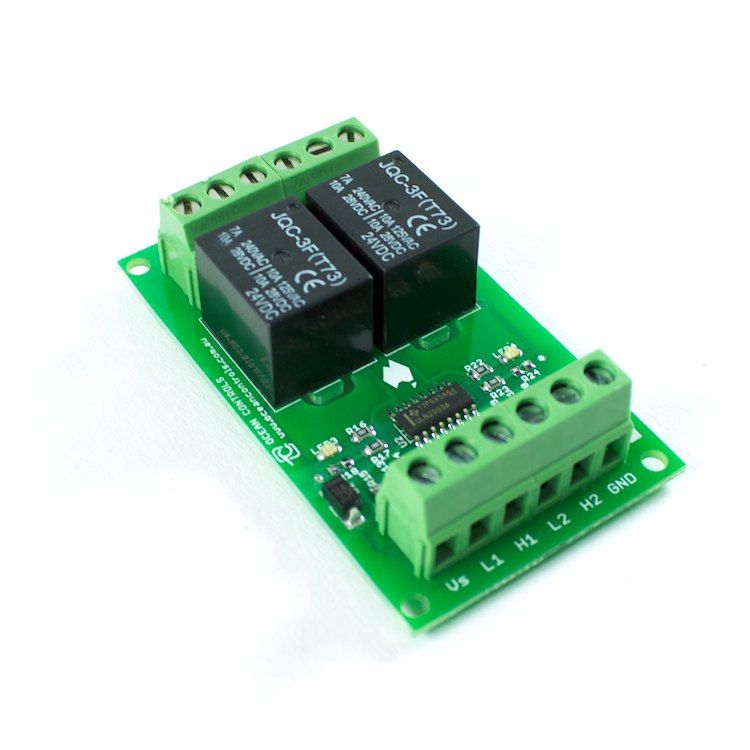

Description: Two-way relay card. This card includes a relay driver allowing a very wide range of input configurations. The driver allows direct connection to many logic families, industrial sensors (NPN or PNP) dry contacts or voltage outputs.

Each relay has HI and LO input terminals. The relay is activated when the HI terminal is driven high or the LO terminal is driven to a low voltage. Each channel has an indicator LED.

A 3.5 mm hole in each corner allow easy mounting on a panel.

PLEASE NOTE: Wiring high voltage can be dangerous and if at all unsure, you should contact an electrician to ensure your installation is safe and meets relevant specifications.

Specifications:

Supply Voltage:21.3 to 26.4 VDC
Supply Current:~4 ma/channel +~20 mA/active relay
Low Input Activation Voltage:≤0.8 VDC
Low Input Voltage Range:0 V to Supply Voltage
High Input Activation Voltage:≥2.4 VDC
High Input Voltage Range:0 V to Supply Voltage
Output Form:1-Z SPDT (NO & NC)
Output Switch Voltage:240 VAC, 28 VDC
Output Load Current:7 A (240 VAC), 10 A (28 VDC)
Relay Coil to Contact Isolation:≥1,500 VAC (1 minute)
Relay Contact to Contact Isolation:≥750 VAC (1 minute)
Relay Contact Resistance:≤100 mΩ
Dimensions:42 × 71 × 20 mm
