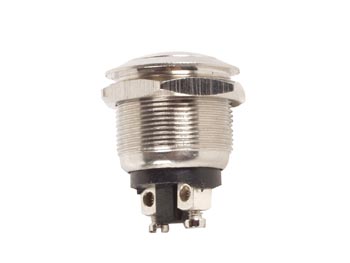

Pushbutton Round Metal SPST OFF-(ON)

(0 review)

SKU : R1500A
Quantity on Hand : 21
Skill Level : Assembled and Tested

Buy 10, Get 5% Off!
Buy 100, Get 10% Off!

4.95 4.95 USD 4.95

4.95

    This combination does not exist.

    Terms and Conditions

    Specifications

    • type: OFF-(ON) SPST

    • ratings: -

    • mounting hole: Ø 19 mm

    • operating temperature: -25 °C ~ +55 °C

    • operating humidity: 45 ~ 85 % RH

    • insulation resistance: > 100M ohms

    • contact resistance: < 50M ohms

    • contact material: silver alloy

    • mechanical life: 1 000 000 cycles

    • electrical life: 50 000 cycles

    • dielectric strength:

    • between terminals of the same pole: 1000 VAC

    • between terminals of different poles: 2000 VAC

    • body material: nickel-plated brass

    • pressure: 5.5 N

    • IP rating: IP40/IP65

    • max. voltage:

    • 24 VDC / 1 A

    • 230 VAC / 0.5 A
