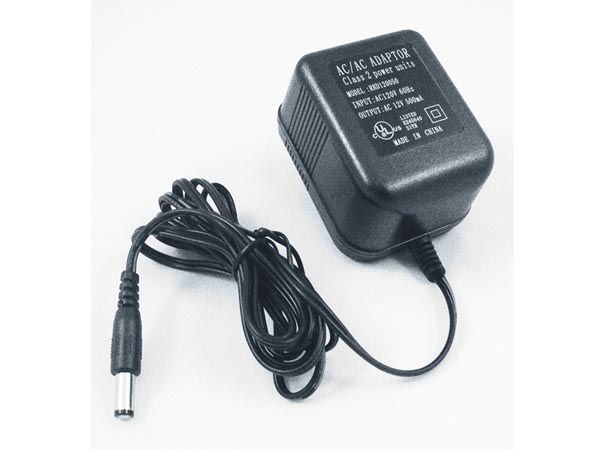

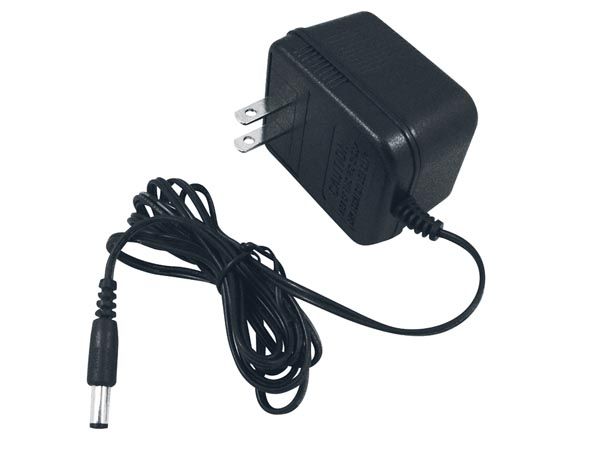

Non-Regulated Single-Voltage Adapter - AC Input AC Output - 12 VAC / 500 mA

(0 review)

SKU : PS1205ACU
Quantity on Hand : 21
Skill Level : Assembled and Tested
ROHS Compliant

Buy 10, Get 5% Off!
Buy 100, Get 10% Off!

10.69 10.69 USD 10.69

10.69

  • WeightMajor
  • WeightMinor

This combination does not exist.

Terms and Conditions

Description: Our line of AC to AC power adapters are "step down" transformers. Unlike traditional AC-DC power adapters which convert AC current to DC current, our AC-AC adapters lower (or step down) the voltage from 110/120 volts to 9, 12, 15 or 18 volts depending on the model. Please note, these are unregulated power supplies. Prior to purchasing this unit, you need to determine if your device requires a regulated power supply.

Features:

  • C-UL-US approval

Specifications:

  • Voltage: 12 VAC

  • Current: 500 mA

  • Input: 120 VAC / 60 Hz

  • Type: non-regulated

  • AC plug: 2.1 mm x 5.5 mm

  • Weight: 9.6 oz

  • Dimensions: 1.625" D x 1.75" W x 2.375" L

  • Cord length: 5 ft.
