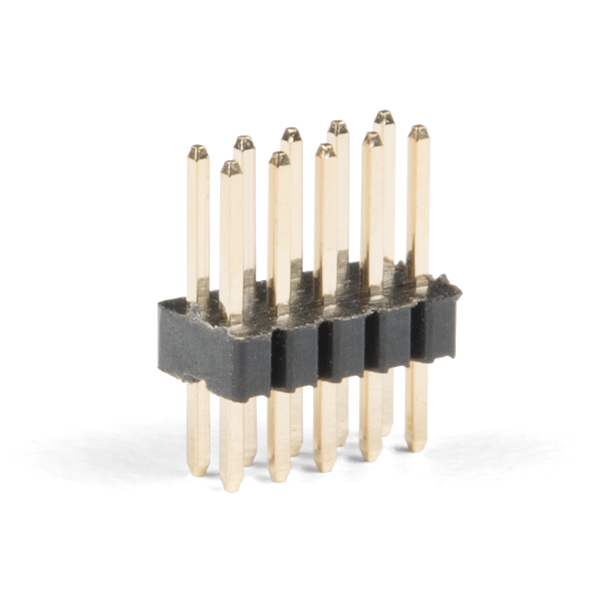

Header - 2x5 Pin (Male, 1.27mm)
SKU : PRT-15362
Quantity on Hand :
4
Skill Level : Component or Part
ROHS Compliant
Buy 10, Get 5% Off!
Buy 100, Get 10% Off!
30-day money-back guarantee
Free Shipping in the U.S. on Orders over $75
We offer worldwide shipping as well
Buy now and choose from several shipping methods

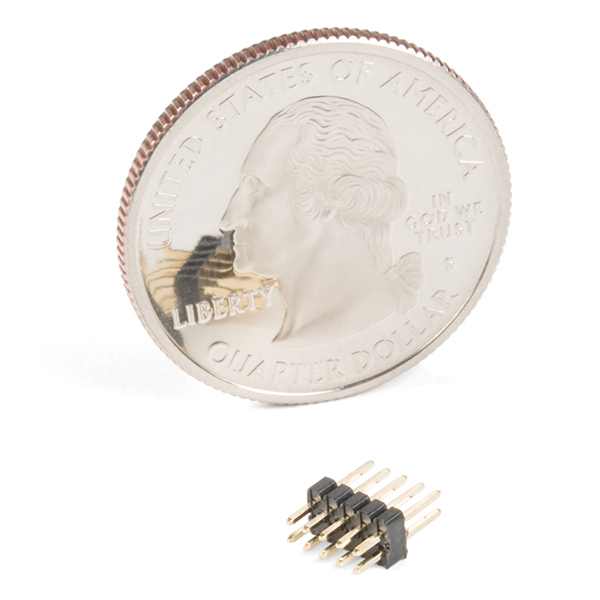

Description: This is a super small, 2x5 pin male PTH header. This header is in the common configuration for JTAG applications. Each pin has a spacing of 1.27mm in between each other and can be cut down to smaller increments if the need arises.
Features:
- Pin style: square
- Number of pins: 10 (2x5)
- Pin spacing: 1.27mm (0.05")
