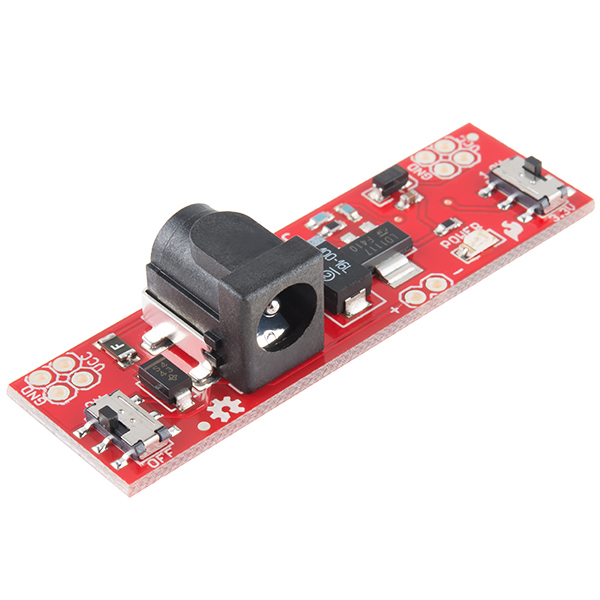

SparkFun Breadboard Power Supply Stick - 3.3V/1.8V

https://electronics123.odoo.com/web/image/product.template/11525/image_1920?unique=0458c59
(0 review)

SKU : PRT-13157
Quantity on Hand : 4
Skill Level : Component or Part
ROHS Compliant

Buy 10, Get 5% Off!
Buy 100, Get 10% Off!

PRT-13157

19.95 19.95 USD 19.95

19.95

Not Available For Sale

This combination does not exist.

Add to cart

Description: This is a very simple board that takes a 4-9V input voltage and outputs a selectable 1.8V or 3.3V regulated voltage. All headers are 0.1" pitch for simple insertion into a breadboard.


Input power can be supplied to either the DC barrel jack or the two pin header labeled + and -. Output power is supplied to the pins labeled GND and VCC. Board has both an On/Off switch and a voltage select switch (3.3V/1.8V).


The two sets of four GND and VCC pins are spaced such that when connected to our Basic Breadboard both power busses will be powered.


Note: Headers are not supplied. You will need to supply your own headers to connect this board to a breadboard. Check below for some breakaway header strips.

Features:

  • 4-9V input voltage via barrel jack or 2-pin header
  • 3.3V or 1.8V regulated output voltage
  • 800mA Operating Current
  • ON/OFF switch
  • Output voltage select switch
  • Power status LED
  • PTC fuse protected power
  • 5.5x2.1mm center positive barrel jack
  • 2.15x0.65"
