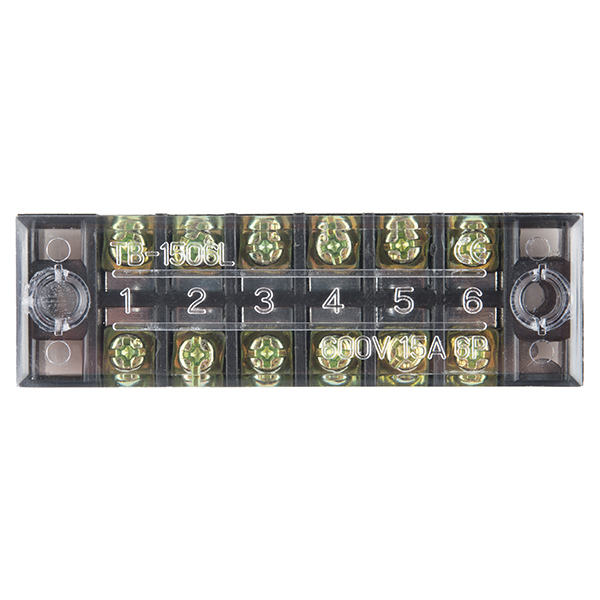

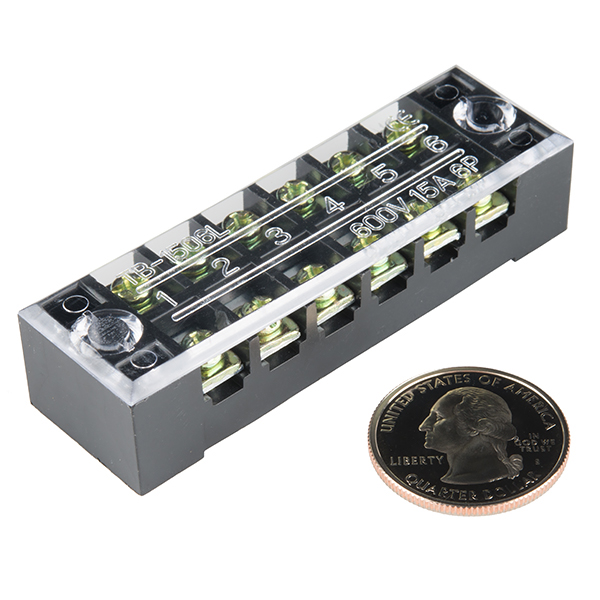

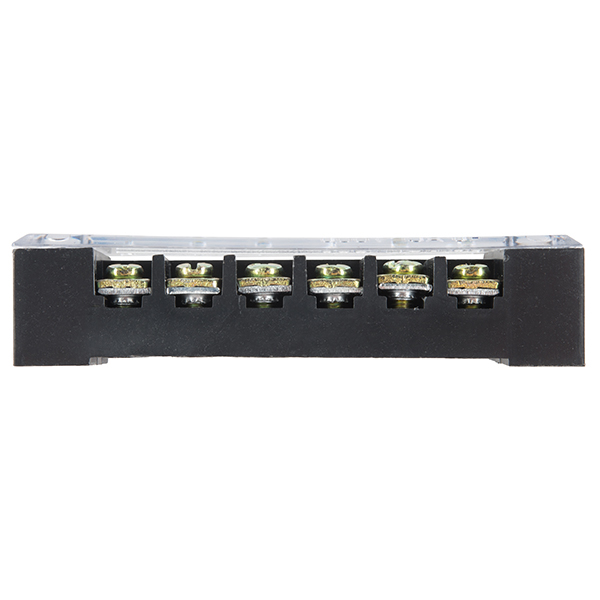

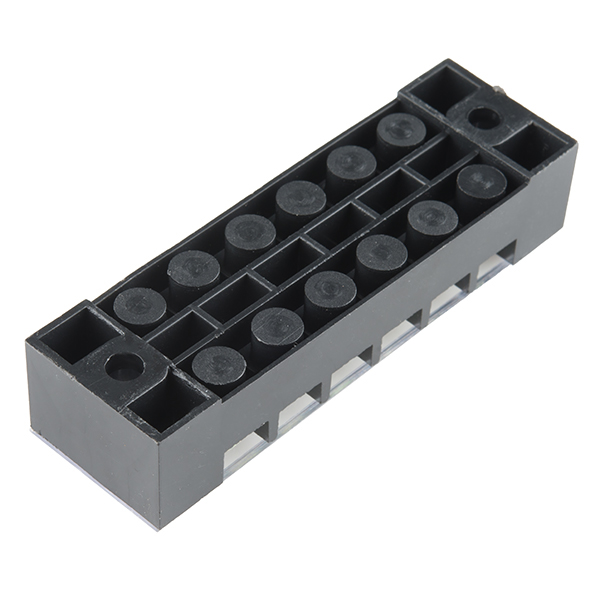

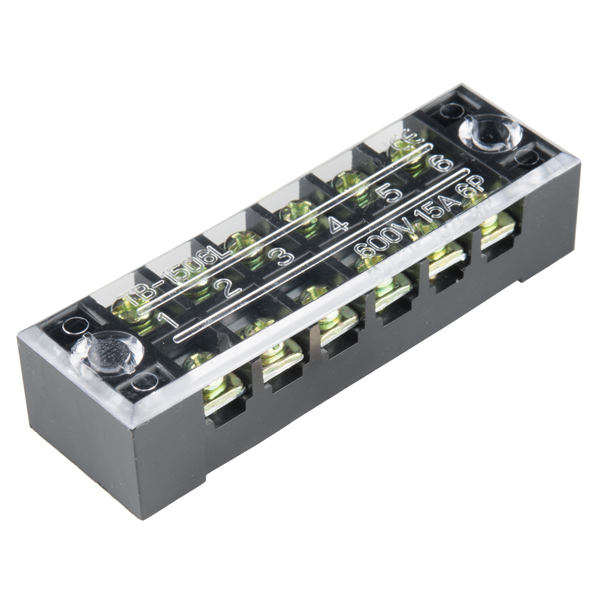

Description: This 6 position screw terminal block provides a simple way to connect wires to a single connection point. These blocks allow wires to be screwed together and self-isolated without needing to twist, solder or any other splicing, by this method wiring can adjusted at anytime just as easy as it was the first time.
Each 6 position block offers a screw pitch of 10mm with a max current of 15A and a max voltage tolerance of 600V before risking meltdown or implosion.
Documentation and Downloads
- Dimensional Drawing (TB-1506)
- Product Video
