Big Red Box - Enclosure

https://electronics123.odoo.com/web/image/product.template/11190/image_1920?unique=d644ac2
(0 review)

SKU : PRT-11366
Quantity on Hand : 2
Skill Level : Component or Part
ROHS Compliant

Buy 10, Get 5% Off!
Buy 100, Get 10% Off!

PRT-11366

10.95 10.950000000000001 USD 10.95

10.95

Not Available For Sale

  • WeightMajor
  • WeightMinor

This combination does not exist.

ADD TO CART

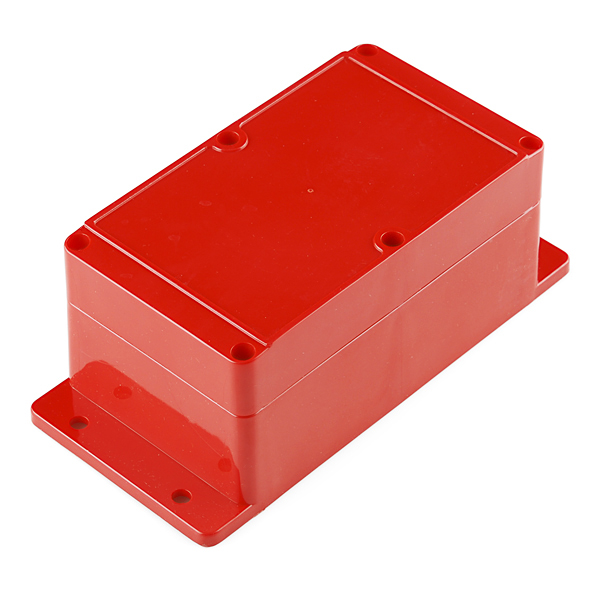

Description: This is the Big Red Box! These beefy, bright red, flanged, plastic enclosures will give your widget the protection (and attention) it deserves. You've probably seen these used to enclose radio equipment or antenna baluns as they can be secured to a pole using U-bolts (not included). At about 3mm thick, this 74x158x90mm enclosure has plenty of space for gizmos, gadgets, widgets and doohickeys. The mounting flanges extend 19mm from either edge with two 50mm-spaced 7mm diameter holes.

There's a rubber gasket around the inside of the lid which forms a dust and moisture resistant seal when the screws are tightened down making the Big Red Box essentially weather/water proof. The lid is secured with six 4mm screws (included).
