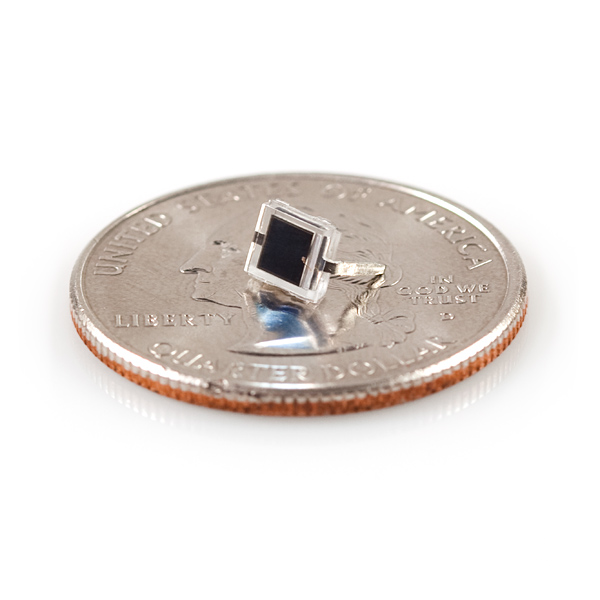

Miniature Solar Cell - BPW34

  • WeightMajor
  • WeightMinor

1.50 1.50 1.5 USD

1.50

This combination does not exist.

Add to Cart

SKU : PRT-09541
Quantity on Hand : 32
Skill Level : Component or Part
ROHS Compliant

Buy 10, Get 5% Off!
Buy 100, Get 10% Off!


30-day money-back guarantee
Free Shipping in the U.S. on Orders over $75
We offer worldwide shipping as well
Buy now and choose from several shipping methods

Terms and Conditions

Share

Description: The BPW34 is a tiny, general-purpose PiN photodiode. This photodiode has a ton of uses, one of which is to use it is a mini solar cell to power your project. The cell is sensitive to a wide range of light wavelengths (430-1100nm), so it should produce power in a number of different settings. The rated open-circuit voltage is 350mV (900nm, 1mW/cm2 light source), and short circuit current is 47μA.

These are fun (of course)! We shined a 940nm infrared LED on one of them and it produced about 0.5VDC open-circuit voltage. Stringing four together in series, we were able to turn an LED on with them. They’ll also produce a small voltage, ~250mV, in a brightly, fluorescent-lit room.

Feature:

  • Package type: leaded

  • Package form: top view

  • Radiant sensitive area (in mm2): 7.5

  • High photosensitivity

  • High radiant sensitivity

  • Suitable for visible and near-infrared radiation

  • Fast response times

  • The angle of half sensitivity: phi = ± 65°

  • Lead (Pb)-free, RoHS compliant* 5.4x4.3x3.2 mm
