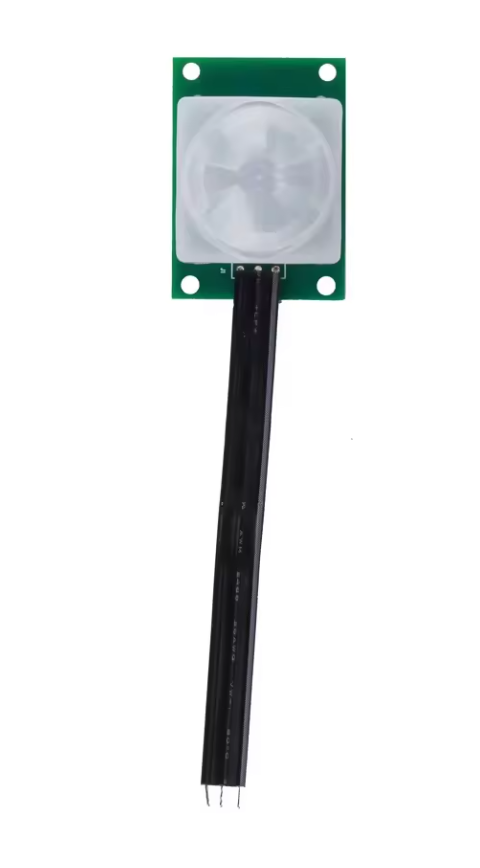

PIR383E PIR Detector Module (replaced item KC7783R)

https://electronics123.odoo.com/web/image/product.template/9798/image_1920?unique=0c60b07
(0 review)

SKU : PIR383E
Quantity on Hand : 213
Skill Level : Assembled and Tested

Buy 10, Get 5% Off!
Buy 100, Get 10% Off!

PIR383E KC7783 CPS76 BB054

7.45 7.45 USD 7.45

7.45

Not Available For Sale

This combination does not exist.

Add to cart

      Share

      Description: This is a fully assembled and tested miniature PIR module with only 3 connections: Power, Ground & Output.

      Features:

      • Rated for 3.3VDC to 12VDC input power.
      • Output is an active high pulse of approx. 2 seconds and remains active as long as there is motion.
      • Power up delay of 25 seconds to prevent false triggering.
      • Range up to 15 feet.
      • PCB size: 35mm x 25mm.


      Mounting

      DIP

      Description

      pir module Human Detector Body Detection

      Type

      Motion & Position Sensor

      Features

      Repeatable triggered

      Output

      Digital Output

      Compact size

      25x35mm

      Current drain

      <40uA

      Operation Temperature

      -20℃ - 60℃

      Infrared sensor

      dual element, low noise, high sensitivity

      Delay time

      25S

      Detection Distance

      5 Meters

      Detection Range

      90 Degree

      Output Pulse Width

      ≥2S

      Supply voltage

      3.3-12V
