Description: The product is passive infrared detector with high stability. It has adopted advanced technology in signal processing and provided super high detection ability and anti error alarm. The detector will detect movement of human automatically when intruder passes through the detection area, and it will send out alarm signal to alarm host if there is movement. The product is suitable for the safety of residential house, villas, factories, markets, warehouses, office building etc.
Technical Specification:
Operating voltage: DC 9V 16V
Current comsuption: 18mA(DC12V)
Detecting distance: 12m
Detecting angle: 110
Self-testing time: 60S or so
Working temperature: -10C ~ +50C
Alarm indicator: red
LED Alarm output: N.C. or N.O., 28VDC, 100mA
Temper output: N.C., DC28V, 100mA
Range of coverage: 11 distance, 8 middle, 5 vicinities
Sensor: dual element infrared sensor
Operating temperature: -10C to +50C
Environment humidity: 95% RH (no congelation)
Anti RF interference: 10MHz 1GHz 20V/m
Installation mode: wall mounted or hanged in corner
Installation height: 1.7 to 2.5m (2.2m is Proposed)

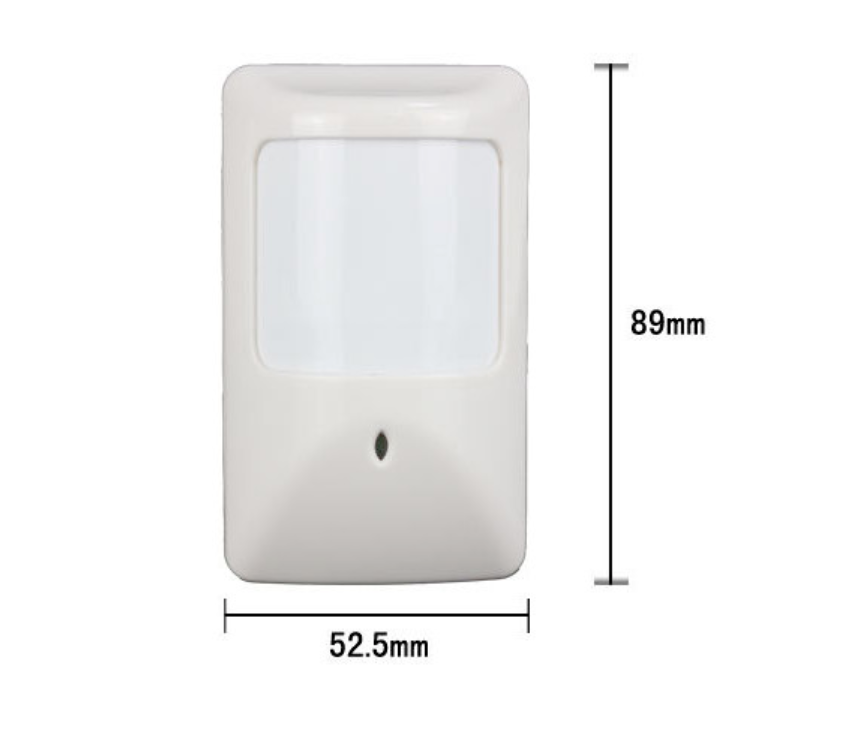

Outline Size: 52.5L*38.5W*89H mm
How to hook this PIR to the MP3 Sound Module
Documentation and Downloads
