External PIR Motion Sensor/Detector

https://electronics123.odoo.com/web/image/product.template/9023/image_1920?unique=d2f36a2
(0 review)

SKU : PIR-001
Quantity on Hand : 11
Skill Level : Assembled and Tested

Buy 10, Get 5% Off!
Buy 100, Get 10% Off!

PIR-001

11.95 11.950000000000001 USD 11.95

11.95

Not Available For Sale

  • WeightMajor
  • WeightMinor

This combination does not exist.

Add to cart
Motion-Triggered Load / Busy Output

Description: The product is passive infrared detector with high stability. It has adopted advanced technology in signal processing and provided super high detection ability and anti error alarm. The detector will detect movement of human automatically when intruder passes through the detection area, and it will send out alarm signal to alarm host if there is movement. The product is suitable for the safety of residential house, villas, factories, markets, warehouses, office building etc.

Technical Specification:

  • Operating voltage: DC 9V 16V
  • Current comsuption: 18mA(DC12V)
  • Detecting distance: 12m
  • Detecting angle: 110
  • Self-testing time: 60S or so
  • Working temperature: -10C ~ +50C
  • Alarm indicator: red
  • LED Alarm output: N.C. or N.O., 28VDC, 100mA
  • Temper output: N.C., DC28V, 100mA
  • Range of coverage: 11 distance, 8 middle, 5 vicinities
  • Sensor: dual element infrared sensor
  • Operating temperature: -10C to +50C
  • Environment humidity: 95% RH (no congelation)
  • Anti RF interference: 10MHz 1GHz 20V/m
  • Installation mode: wall mounted or hanged in corner
  • Installation height: 1.7 to 2.5m (2.2m is Proposed)

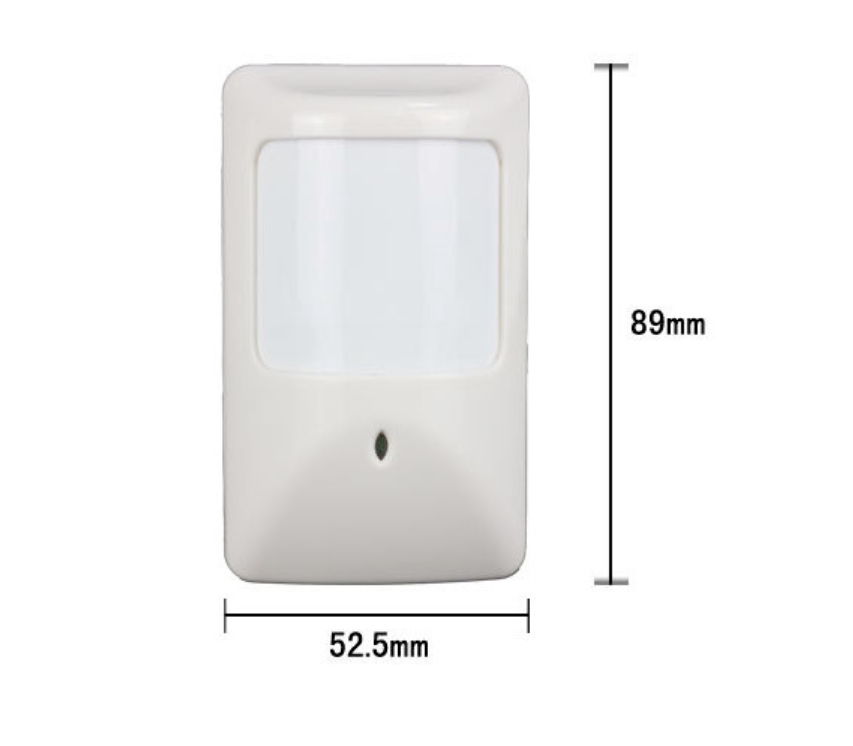

  • Outline Size: 52.5L*38.5W*89H mm

PLEASE NOTE: in the datasheet it switches the physical placement of the "Alarm" and "Tamper" terminal block orientation.  Refer to the silk screen on the board for assurance.
