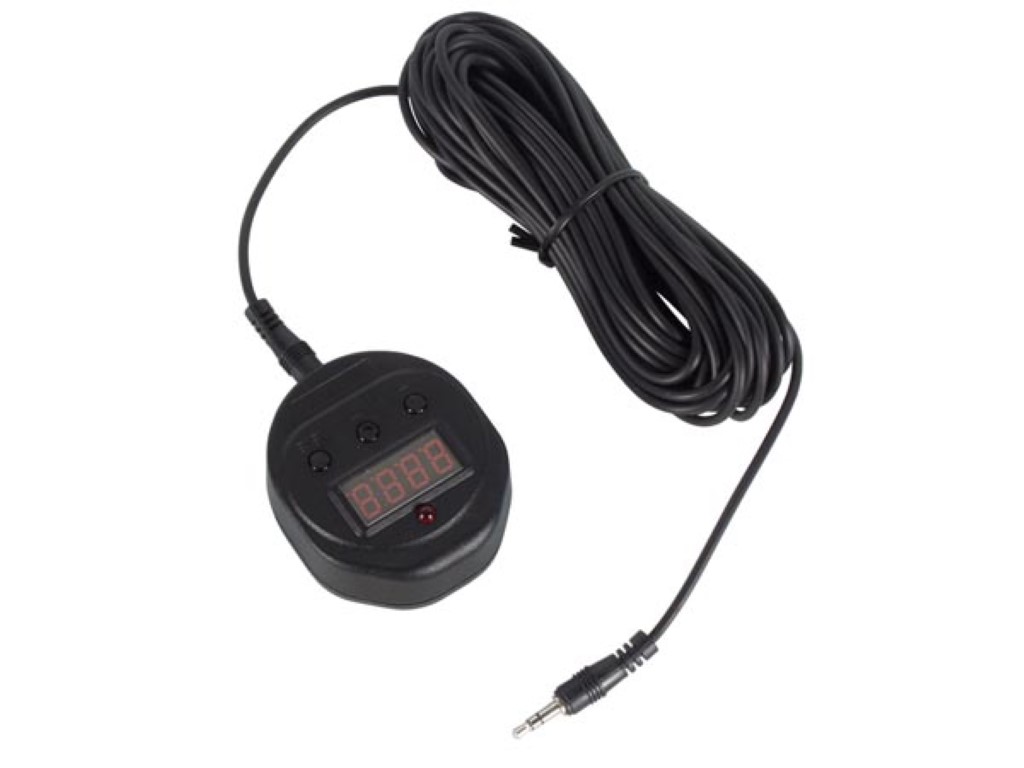

- Sensing type: counter for access control system PEM7D
- Applications: garage door, entrance, supermarket, restaurant, warehouse, ...
- One 4-digit counter
- One cable (10m) to connect the speaker output of the PEM7D with the input of the 4-digit counter PEM7D/C
- One mounting bracket (black finish) and mounting screws
- Input voltage: 9-15Vdc
- Max. display: 9999 (4 digits)
- Addition: push "+" to add 1
- Subtraction: push "-" to subtract 1
- Manual operation: yes, hold + or - for 1 sec.
- Reset: press reset button ('0000')
- Monitor colour: red
- Casing material: ABS
- Current consumption: 48.7 mA ±10% (when '0000')
- Standby current: 25mA max.
- Light source: IR LED
- Ambient temperature: -20°C~45°C (-4°F~122°F)
- Response time of speaker: chime: 1 sec - - alarm: 30sec (adjustable)
- External chime output: NPN output
- Speaker output: chime/off/alarm (selected by slide switch)
- Included : mounting bracket, screw and cable (10m) with twin plugs
