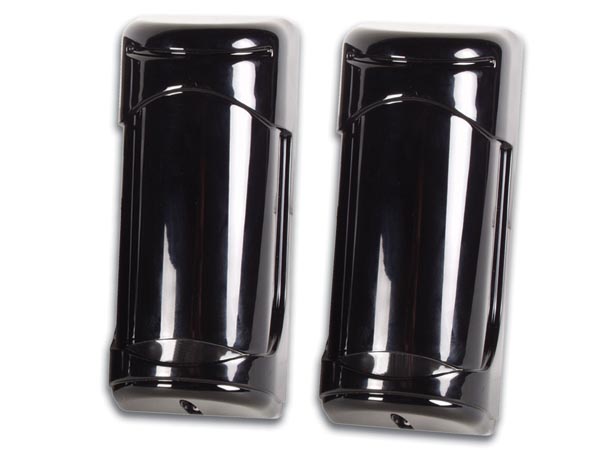

Twin Photo Beam Detectors, 60m

(0 review)

SKU : PEM300D
Quantity on Hand : 1
Skill Level : Assembled and Tested

Buy 10, Get 5% Off!
Buy 100, Get 10% Off!

89.00 89.0 USD 89.00

89.00

    This combination does not exist.

    Terms and Conditions

    Share

    Features:

    • Easy and accurate adjustment thanks to the built-in laser
    • Range:
      • Outdoor: 30m (100ft)
      • Indoor: 60m (200ft)

    Specifications:

    • Power supply: DC 10 ~ 30V (not incl.)
    • Detection system: simultaneous breaking of 2 IR-beams
    • Response time: 50ms ~ 700ms (variable)
    • Alarm output: NC/NO 1A/120VAC
    • Tamper output: NC 1A/120VAC
    • LED indicators:
      • Alarm LED (receiver): red LED on - when transmitter and receiver are not aligned or when beam is broken
      • Signal LED (receiver): yellow LED on - when receiver's signal is weak or when beam is broken
      • Power LED (transmitter & receiver): green LED on - indicates that device is ON
    • Wave length: 650nm
    • Laser output power: max. 5mW
    • IP rating: IP55
    • Alignment range:
      • Horizontal: ± 90°
      • Vertical: ± 15°C
    • Operating temperature: -13°F to +131°F
    • Dimensions: 6.7" x 3.0" x 2.8"
    • Weight: 2.4 lbs

    Documentation and Downloads
