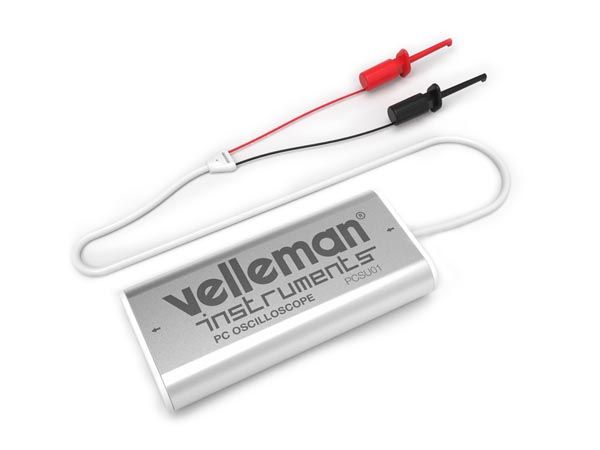

Velleman PCSU01: Mini USB Oscilloscope for Windows PCs

  • WeightMajor
  • WeightMinor

54.95 54.95 54.95 USD


This combination does not exist.

Add to Cart

Quantity on Hand : 1
Skill Level : Assembled and Tested

Buy 10, Get 5% Off!
Buy 100, Get 10% Off!

30-day money-back guarantee
Free Shipping in the U.S. on Orders over $75
We offer worldwide shipping as well
Buy now and choose from several shipping methods

Terms and Conditions


Description: Turn your computer into an oscilloscope with the Velleman PCSU01: Mini USB Oscilloscope for Windows PCs. This portable scope is quick and easy to use. Just plug it into your Windows XP, Vista, 7, 8 and 10 computer via USB and install our custom software to use your PC as an oscilloscope.

This pocket sized scope includes test leads and has three separate functions — oscilloscope, spectrum analyzer and transient recorder. In the oscilloscope module, use the PCSU01 as a digital storage oscilloscope to analyze voltage over time and display the data in waveform graphs. The spectrum analyzer allows you to visualize the frequency spectrum of a signal using FFT (Fast Fourier Transform) analysis. Use the transient recorder to record events and log slow changing processes such as temperature and battery charge cycles.


  • Turn your PC into a digital oscilloscope, spectrum analyzer and transient recorder

  • Portable and easy to use - simply plug into your computer via the included USB cable

  • Select between Expert or Basic mode in software

  • Stores display graphs and data

  • Sample history function

  • Auto set up function


  • Oscilloscope:
    • bandwidth: DC to 200 kHz ± 3 dB
    • input impedance: 100 kO / 20 pF
    • maximum input voltage: 30 V (AC + DC)
    • time base: 10 µs to 500 ms per division
    • input range: 100 mV to 5 V/division
    • input sensitivity: 3 mV display resolution
    • readouts: true RMS, dBV, dBm, p to p, Duty cycle, Frequency…
    • record length: 1k samples
    • sampling frequency: 62.5 Hz to 1.5 MHz
    • sample history function
    • auto set-up function
    • pre-trigger function: on 0.1 ms/div .. 500 ms/div ranges
    • persistence options: colour graded, Variable and Infinite
  • Spectrum Analyzer:
    • frequency range: 0 .. 150 Hz to 75 kHz
    • operating principle: FFT (Fast Fourier Transform)
    • FFT resolution: 512 lines
  • Transient Recorder:
    • timescale: 20 ms/div to 2000 s/div
    • max. recording time: 9.4 h/screen
    • automatic storage of data
    • record and display of screens
    • max. number of samples: 100/s
    • min. number of samples: 1 sample/20 s
  • General Information:
    • markers for: amplitude/voltage and frequency/time
    • expert or basic mode selection in software
    • input coupling: DC and AC
    • 8 bit resolution
    • storage of display and data
    • dimensions: 85 x 14 mm
  • Minimum System Requirements:
    • Windows® XP, Vista, 7, 8, 10
    • Mouse (or mouse pad)
    • Free USB port 1.1 or 2.0
