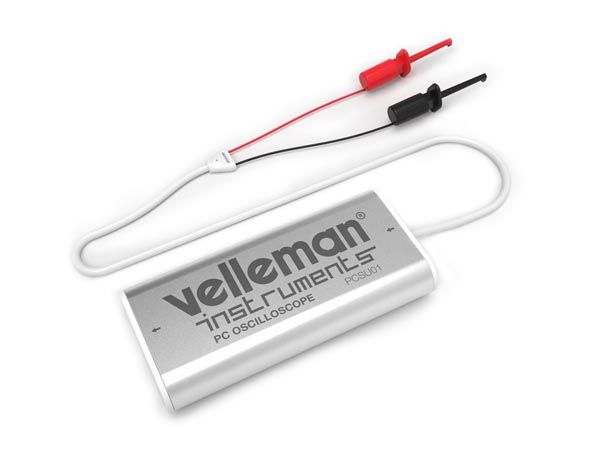

Description: Turn your computer into an oscilloscope with the Velleman PCSU01: Mini USB Oscilloscope for Windows PCs. This portable scope is quick and easy to use. Just plug it into your Windows XP, Vista, 7, 8 and 10 computer via USB and install our custom software to use your PC as an oscilloscope.
This pocket sized scope includes test leads and has three separate functions — oscilloscope, spectrum analyzer and transient recorder. In the oscilloscope module, use the PCSU01 as a digital storage oscilloscope to analyze voltage over time and display the data in waveform graphs. The spectrum analyzer allows you to visualize the frequency spectrum of a signal using FFT (Fast Fourier Transform) analysis. Use the transient recorder to record events and log slow changing processes such as temperature and battery charge cycles.
Features:
Turn your PC into a digital oscilloscope, spectrum analyzer and transient recorder
Portable and easy to use - simply plug into your computer via the included USB cable
Select between Expert or Basic mode in software
Stores display graphs and data
Sample history function
Auto set up function
Specifications:
- Oscilloscope:
- bandwidth: DC to 200 kHz ± 3 dB
- input impedance: 100 kO / 20 pF
- maximum input voltage: 30 V (AC + DC)
- time base: 10 µs to 500 ms per division
- input range: 100 mV to 5 V/division
- input sensitivity: 3 mV display resolution
- readouts: true RMS, dBV, dBm, p to p, Duty cycle, Frequency…
- record length: 1k samples
- sampling frequency: 62.5 Hz to 1.5 MHz
- sample history function
- auto set-up function
- pre-trigger function: on 0.1 ms/div .. 500 ms/div ranges
- persistence options: colour graded, Variable and Infinite
- Spectrum Analyzer:
- frequency range: 0 .. 150 Hz to 75 kHz
- operating principle: FFT (Fast Fourier Transform)
- FFT resolution: 512 lines
- Transient Recorder:
- timescale: 20 ms/div to 2000 s/div
- max. recording time: 9.4 h/screen
- automatic storage of data
- record and display of screens
- max. number of samples: 100/s
- min. number of samples: 1 sample/20 s
- General Information:
- markers for: amplitude/voltage and frequency/time
- expert or basic mode selection in software
- input coupling: DC and AC
- 8 bit resolution
- storage of display and data
- dimensions: 85 x 14 mm
- Minimum System Requirements:
- Windows® XP, Vista, 7, 8, 10
- Mouse (or mouse pad)
- Free USB port 1.1 or 2.0
