USB Function Generator

https://electronics123.odoo.com/web/image/product.template/10255/image_1920?unique=20eaaed
(0 review)

SKU : PCGU01
Quantity on Hand : 1
Skill Level : Assembled and Tested

Buy 10, Get 5% Off!
Buy 100, Get 10% Off!

PCGU01

69.95 69.95 USD 69.95

69.95

Not Available For Sale

  • WeightMajor
  • WeightMinor

This combination does not exist.

Add to cart

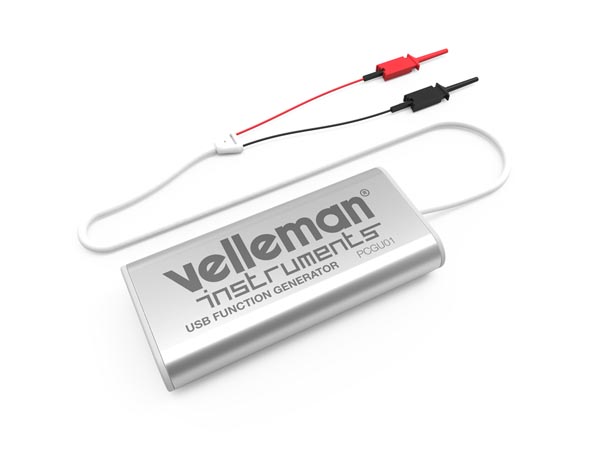

Description: The new PC USB miniature function generator is simple to use and has a frequency range of up to 1 MHz!

This nifty measuring instrument can generate sine, square and triangle waveforms, and it has a DAC resolution of 10 bits. To top things off, it has an output of 0.2 Vpp to 10 Vpp.

Download the dedicated Windows® software and control the various signals. Among other things, the software includes a handy automated wave sequence generator.

Features:

  • Dedicated Windows® software to control the various signals (free download)
  • Software includes an automated wave sequence generator
  • Design enclosure
  • Test leads
  • Free software download
  • USB cable

Specifications:

  • DAC resolutions: 10 bits
  • Frequency range: sine, triangle form 1 Hz to 1 MHz, square wave 1 Hz to 100 kHz
  • Frequency setting resolution: 0.04 Hz
  • Sweep function
  • Amplitude range: 200 mVpp to 10 Vpp @ 1 kHz // no load / 0 V offset
  • Amplitude range with offset: 200 mVpp to 7.5 Vpp @ 1 kHz // no load / -2.5 V to +2.5 V offset
  • Offset range : from 0 to -2.5 V or +2.5 V max. (resolution 0.5% of full scale)
  • Waveforms: sine, square and triangle
  • Typical sine wave distortion (THD): < 0.02% @ 1 kHz / 0 dB / 600 Ohm
  • Square wave rise/fall time: < 0.2 µs
  • Output impedance: 50 Ohm
  • Note: PC USB ground is connected to GND output
  • Minimum system requirements:
    • Windows® XP, Vista, 7, 8, 10
    • Mouse or touchpad
    • Free USB port 1.1 or 2.0
