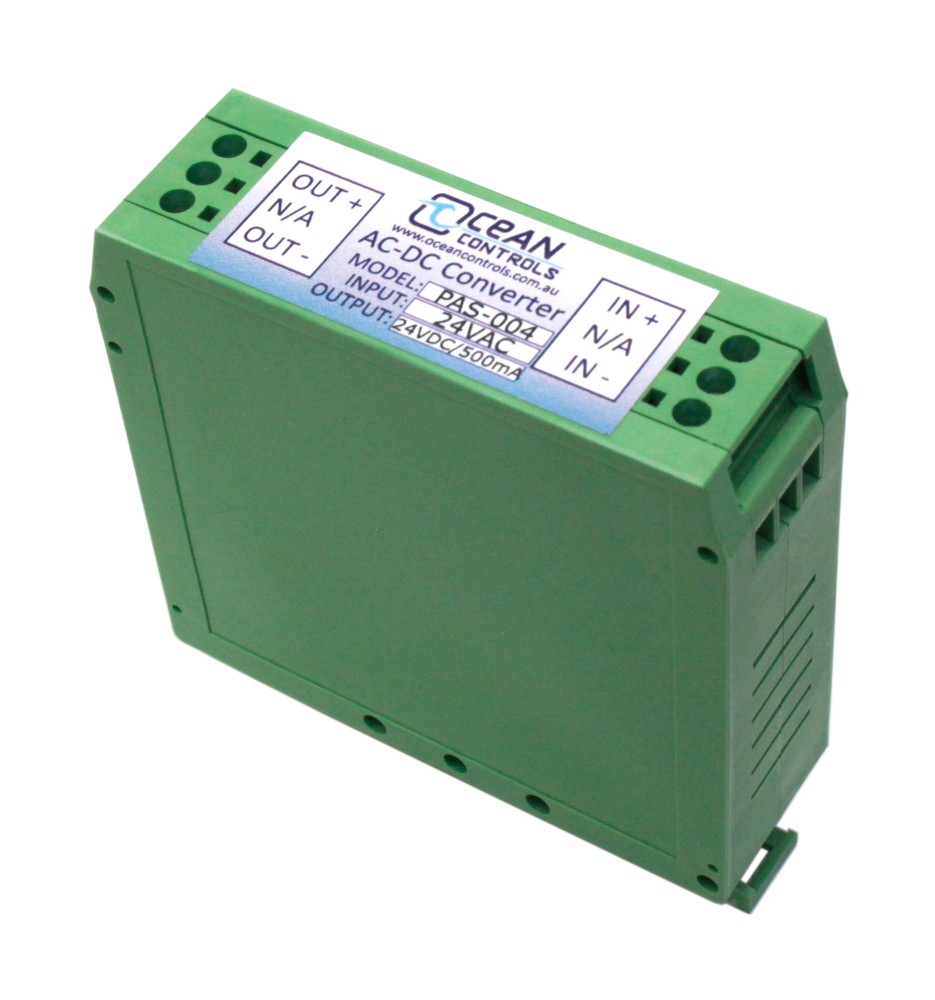

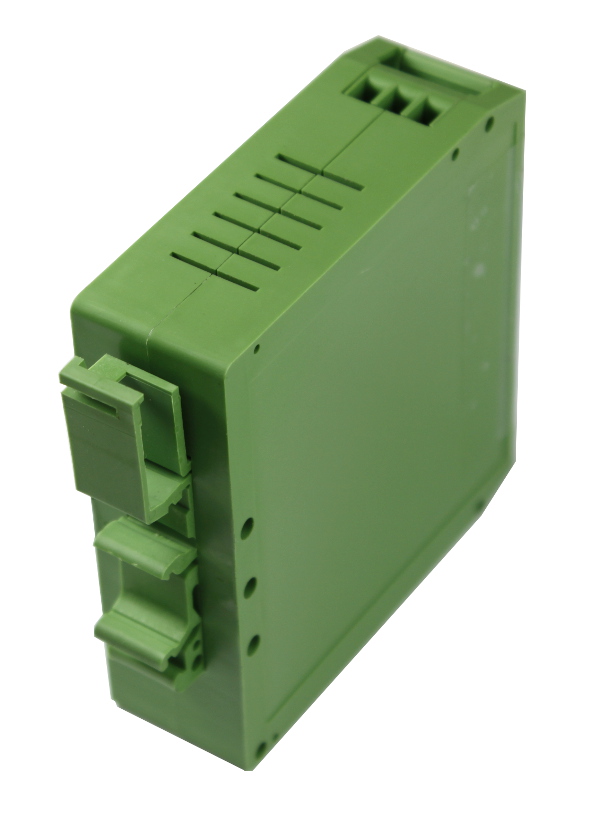

24V AC to 24V DC Power Supply 12W

https://electronics123.odoo.com/web/image/product.template/11494/image_1920?unique=0e0e332
(0 review)

SKU : PAS-004
Quantity on Hand : 2
Skill Level : Assembled and Tested
ROHS Compliant

Buy 10, Get 5% Off!
Buy 100, Get 10% Off!

PAS-004

79.95 79.95 USD 79.95

79.95

Not Available For Sale

This combination does not exist.

Add to cart

Description: These are regulated output, DIN rail mountable, isolated AC to DC converters are useful for converting 24V AC to a DC supply. Useful for situations where mains voltage is not available for use with a traditional power supply, such as in older style switch gear.

Features:

  • Power Supply: 24VAC
  • Power Consumption: 12W
  • Output Voltage: 24VDC
  • Output Current: 0 to 500mA
  • Operating Temperature: -40 to 70°C
  • Short circuit, over load and over voltage protections
  • Isolated switch-mode topology for high efficiency
  • R.C terminal allows remote on/off control of the output
  • Cooling by free air convection
  • 100% full load burn in test
  • CE and FCC approved.
  • EMC emission and immunity complaint
  • DIN rail mountable
  • Dimensions: 25W x 82H x 90D (mm)

Documentation and Downloads
