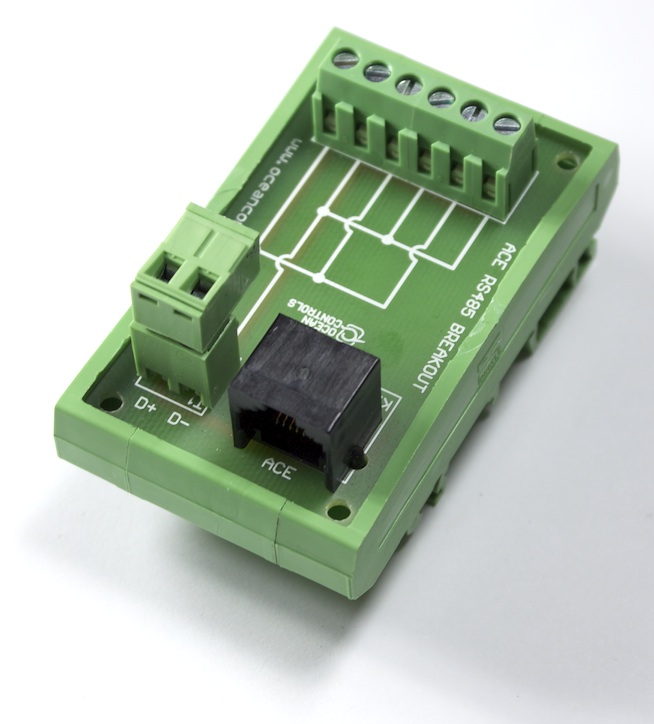

Description: This card allows you to connect several RS-485 devices to a MOSCAD ACE RTU.
It provides an RJ45 socket to suit the MOSCAD and 4 pairs of screw terminals for RS-485 devices. The card breaks out pins 1 and 8 of the RJ45 socket and connects them to the pairs of screw terminals in parallel.
DIN rail mountable.
