Description: This is one in a family of products based on the most advance CMOS mixed signal technology. It integrates image array, signal processing, timing and control circuitry, all on a single chip. It is ideal for applications requiring a small footprint, low power and low cost.

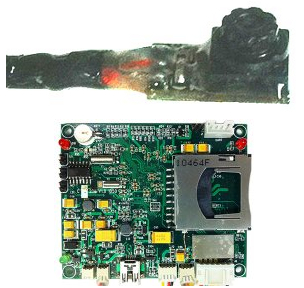

The camera is supplied with a C6203 back-end included. The C6203 is specially designed as an interface for the MuC30x-series micro camera modules. It has a built-in DSP as an interface for the MuC30x-series. It integrates image array, signal processing, timing and control circuitry, all on a single chip. It is ideal for applications requiring a small footprint, low power and low cost.
Features:
PCB size 4.5x8mm
Vertical view
Lens included
FOV 120deg
20cm to ~
2.63mm diameter for the sensor module
2.0mm diameter cable included: Length - 1m
OV6930 CMOS image sensor
Resolution 400x400
6pin connection
Direct interface to TV monitor
PAL/NTSC TV system
JPG or AVI recording
VGA 30fps
DC5V
Storage to SD card, up to 16G
Includes keyboard and cables
PLEASE NOTE: Because of the extreme small size and delicate nature of this camera we cannot accept any damaged cameras back for exchange or refund.



Documentation and Downloads
