Description: This is one in a family of products based on the most advance CMOS mixed signal technology. It integrates image array, signal processing, & timing and control circuitry all on a single chip. It is ideal for applications requiring a small footprint, low power and low cost.

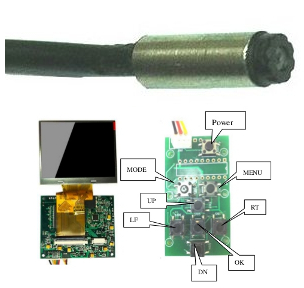

The camera is supplied with an C9203 included. The C9203 is specially designed as an interface for the muC30x-series micro-camera module. It has a built in DSP as an interface for the MuC30x-series.
Extremely Small size: 3.5mm outside diameter!
- Lens included (mounted)
- FOV 120deg
- Fixed focus
- 2.63mm diameter for the sensor module
- OV6930 CMOS image sensor
- Resolution 400x400
- 6pin connection
- 3.5" TFT panel
- JPG / AVI recording
- playback on system
- DC5V or battery operation
- Storage to SD card, up to 16G
- Includes Keyboard and connectors
