MuC302-C3842 Combo Camera Module
(0 review)

SKU : MuC302-C3842
Skill Level : Assembled and Tested

Buy 10, Get 5% Off!
Buy 100, Get 10% Off!


399.36 399.36 USD 399.36


Not Available For Sale

    This combination does not exist.



    Description: This is one in a family of products based on the most advance CMOS mixed signal technology. It integrates image array, signal processing, timing and control circuitry, all on a single chip. It is ideal for applications requiring a small footprint, low power and low cost.

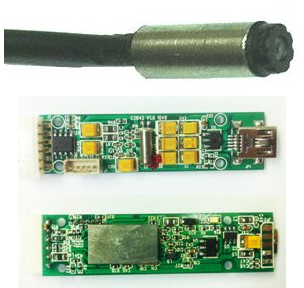

    The camera is supplied with a C3842 back-end included. The C3842 is specially designed as an interface for the MuC30x series micro-camera modules. It has a built-in USB 2.0 transceiver. A demo program has been designed for evaluation purpose.

    Extremely Small size: 3.5 mm outside diameter!


    • OD3.5mm
    • Lens included (mounted)
    • FOV 120deg
    • Fixed focus
    • 2.63mm diameter for the sensor module
    • OV6930 CMOS image sensor
    • Resolution 400x400
    • 6pin connection
    • EV program provided
    • USB2.0 compatible
    • Size : 14.5 x 55 mm
    • Low power consumption 60mA

    PLEASE NOTE: Because of the extreme small size and delicate nature of this camera we cannot accept any damaged cameras back for exchange or refund.

    Documentation and Downloads
