MuC302-1m-C6201 Combo Camera Module

https://electronics123.odoo.com/web/image/product.template/5052/image_1920?unique=a3a93ed
(0 review)

SKU : MuC302-1m-C6201
Skill Level : Assembled and Tested

Buy 10, Get 5% Off!
Buy 100, Get 10% Off!

MuC302-1m-C6201

429.00 429.0 USD 429.00

429.00

Not Available For Sale

  • WeightMajor
  • WeightMinor

This combination does not exist.

Add to cart

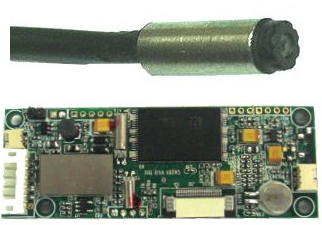

Description: This is one in a family of products based on the most advance CMOS mixed signal technology. It integrates image array, signal processing, timing and control circuitry, all on a single chip. It is ideal for applications requiring a small footprint, low power and low cost.

The camera is supplied with a C6201 back-end included. The C6201 is specially designed as an interface for the MuC30x-series micro camera modules. It has a built-in DSP as an interface for the MuC30x-series. It integrates image array, signal processing, timing and control circuitry, all on a single chip. It is ideal for applications requiring a small footprint, low power and low cost.

Extremely Small size: 3.5mm outside diameter!

Features:

  • OD3.5mm
  • Lens included (mounted)
  • FOV 120deg
  • Fixed focus
  • 2.63mm diameter for the sensor module
  • 2.0mm diameter cable included: Length - 1m
  • OV6930 CMOS image sensor
  • Resolution 400x400
  • 6pin connection
  • Direct interface to TV monitor
  • NTSC / PAL compatible (You are buying the NTSC version. Contact us if you need PAL version instead)
  • Size : 25 x 70mm
  • Low power consumption 120mA
  • Plug and play
  • DC5V

PLEASE NOTE: Because of the extreme small size and delicate nature of this camera we cannot accept any damaged cameras back for exchange or refund.

Documentation and Downloads
